  Imperial Productions ®

 Roman Ionic Columns

 Decorative & Load Bearing













 Design Theory: Ionic Column Origins



The Ionic Order of Columns is one of the three main Classical Greek orders of columns: Doric, Ionic and Corinthian. Ionic uses an Attic Base.



The Ionic order is typified by the Scrolls (volutes) that resemble a Rams Horn. The scrolls face forward with the sides remaining as an elongated tube. All works well until placement engages a corner, creating a dilemma as to which way to face the volutes.  The Romans created an angled Volute which was typified by Scamozzi in the Renaissance.



Imperial Productions® offers Ionic columns with Tapered or

Non-Tapered stylus or shafts.  The shafts can be Fluted or Smooth. Tapered shafts may have the correct taper or Entasis (ie Taper 2/3rds down the stylus from the top. The last third is straight ending at the Attic Base which is used on all orders except Tuscan.



Imperial Productions® offers Ionic columns both load bearing and decorative to wrap a load bearing posts or stand alone engaged against a wall to enhance a building's facade.



Ionic Load Bearing Columns support the Entablature of a Classical or Modern structure. Larger diameters can support up to 20,000 lbs without internal supports.



Decorative Ionic columns can stand alone as a whole column or be specified to be split. Split Ionic columns can be engaged or placed against a solid wall or specified to be split-to-wrap a load bearing steel or wood post.



Imperial Productions® has a vast selection of Ionic Columns for commercial, residential, movie, garden and theatre applications.

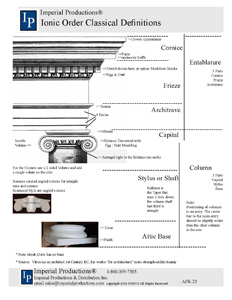

  Source: Definitions by

 Vitruvius Pollio

 1st Centrury BC

 click to

 Enlarge the PDF

         Scamozzi





 For Prices Select Column Height





  Smooth Shafts











 Feet



 Metric

 3 Feet  91.4cm
 4 Feet  1.219 meters
 5 Feet  1.524 meters
 6 Feet  1.828 meters
 8 Feet  2.438 meters
 9 Feet  2.743 meters
10 Feet  3.048 meters
 12 Feet  3.657 meters
 14 Feet  4.267 meters
 16 Feet  4.876 meters
 18 Feet  5.486 meters
 20 Feet  6.096 meters







  Fluted Shafts





 Feet



 Metric

 8 Feet

 2.43m

 9 Feet

 2.74m

 10 Feet

 3.04m

 12 Feet

 3.65m









 Part Smooth/Fluted - Custom













 Rope Shafts

  roman ionic rope columns





    Hardwood, ArchPolymerTM ,

   GRG-NeoPlasterTM



    Call for any Custom Size

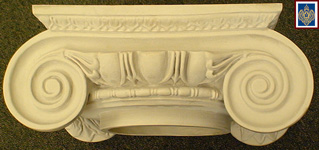

  Ionic Capitals sold separately

  Roman Ionic Round Capitals



  Roman Ionic Square Capitals









 Attic Bases



   youtube video learn about column base materials






  Videos



  youtube video on archpolymer youtube video about hardwood columns  youtube video all about polycomp columns

 Information

  Learn about design principles how to preserve wood
