Imperial Productions ®

8 Feet (2.43 meter)

Cylinders Standard & Custom

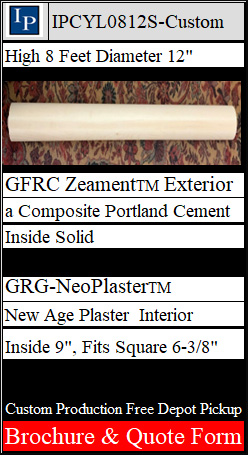

8 Feet Custom Cylinders

8 Feet: Diameter 3" to 36"	Buy Options	Materials-Videos



	Information

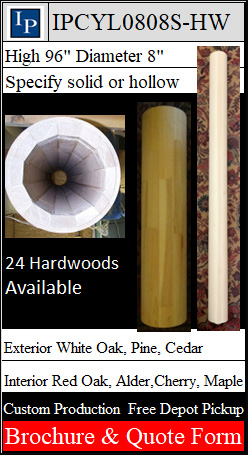

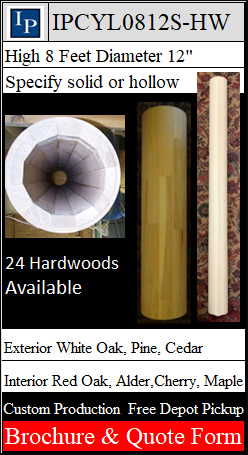

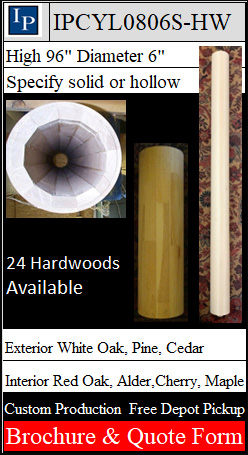

24 Hardwoods - Structural & Decorative		Cylinder

STANDARD MODELS

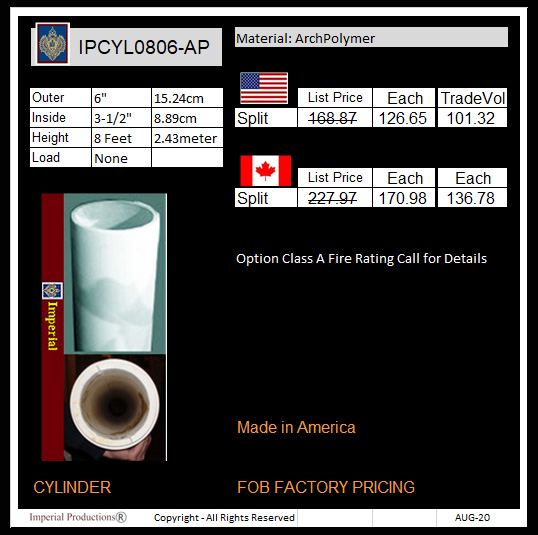

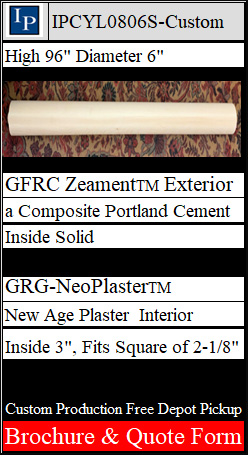

Item 1) Diameter 6" (15.24cm)	Buy Options	Materials




IPCYL0806S-POL is a Decorative 8 Feet High (2.438m) Cylinder with an outside diameter of 6" (15.24cm). Comes split for post wrap. Inner diameter is 3" (12.7cm), Fits Square 3-9/16" post or Round 4-3/4". It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

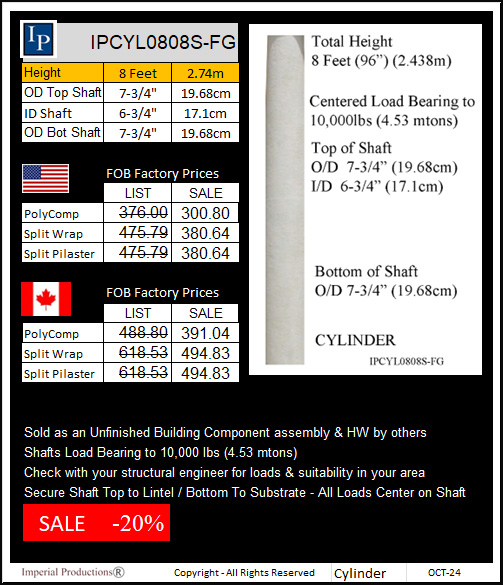

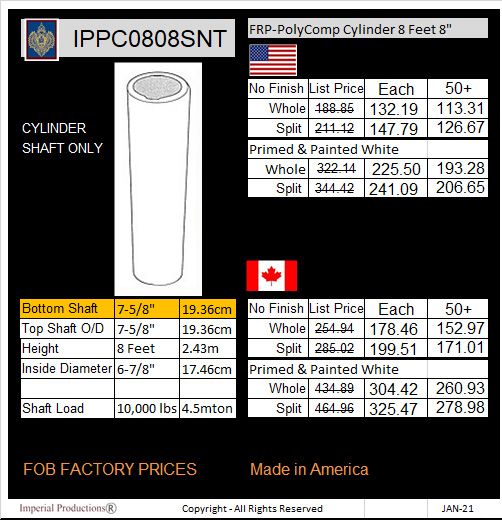

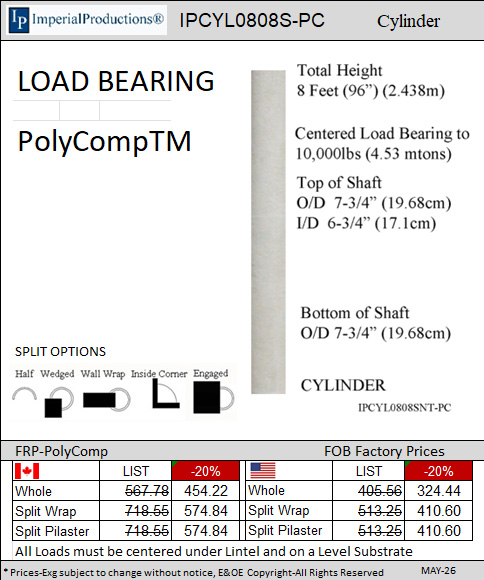

Item 2) Diameter 7-3/4" (19.68cm)	Buy Options	Materials




IPCYL0808S-PC is a Load Bearing 8 Feet High (2.438m) Cylinder with an outside diameter of 7-3/4" (19.68cm). It is load bearing to 10,000lbs (4.53 mtons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 6-3/4" (17.1cm). It is made from FRP-PolyCompTM. Print the Brochure to request a custom quote with freight.

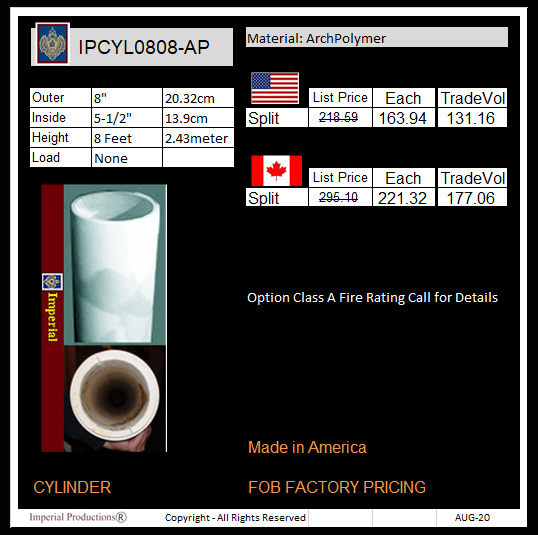

Item 3) Diameter 8" (20.32cm)	Buy Options	Materials




IPCYL0808S-POL is a Decorative 8 Feet High (2.4384m) Cylinder with an outside diameter of 8" (20.32cm). Comes split for post wrap. Inner diameter is 5" (12.7cm), Fits Square 3-9/16" post or Round 4-3/4". It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

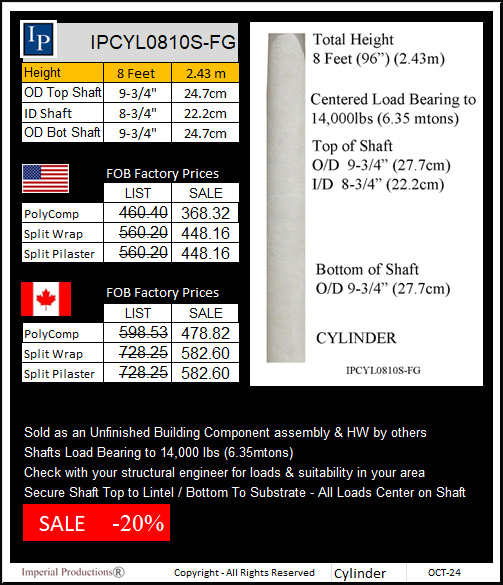

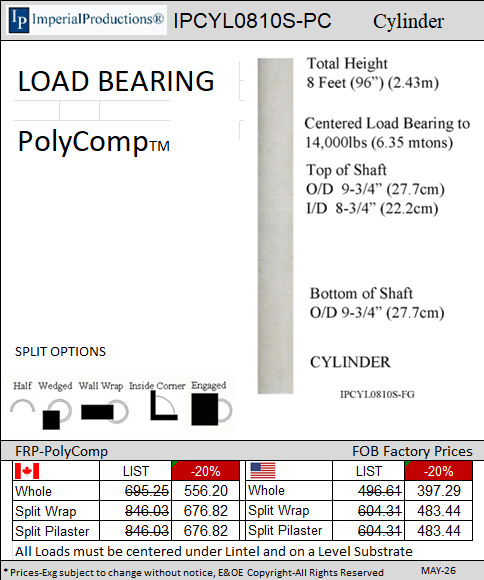

Item 4) Diameter 9-3/4" (27.7cm)	Buy Options	Materials




IPCYL0810S-PC is a 8 Feet High FRP-PolyCompTM Non Tapered Cylinder with an outside diameter of 9-3/4" (27.78cm). It is load bearing to 14,000lbs (6.35mtons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 8-3/4" (22.2cm). It is made from FRP-PolyCompTM. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

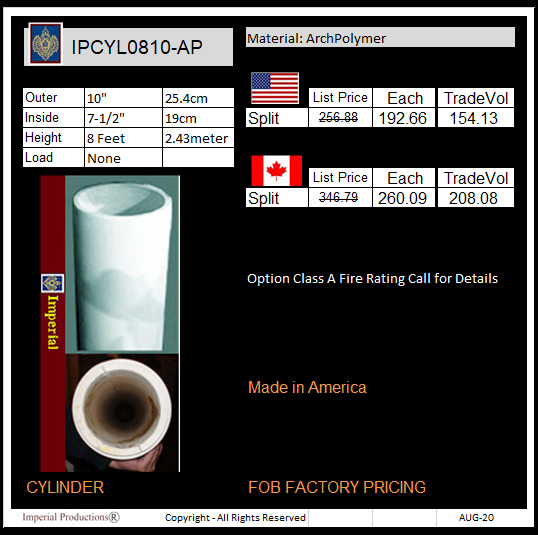

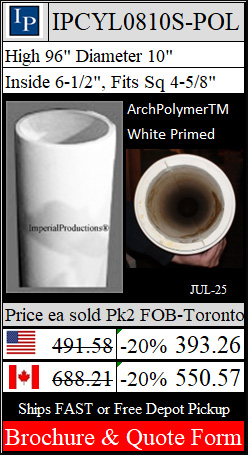

Item 5) Diameter 10" (25.4cm)	Buy Options	Materials




IPCYL0810S-POL is a Decorative 8 Feet High (2.438m) Cylinder with an outside diameter of 10" (25.4cm). Comes split for post wrap. Inner diameter is 7-1/2" (19cm), It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

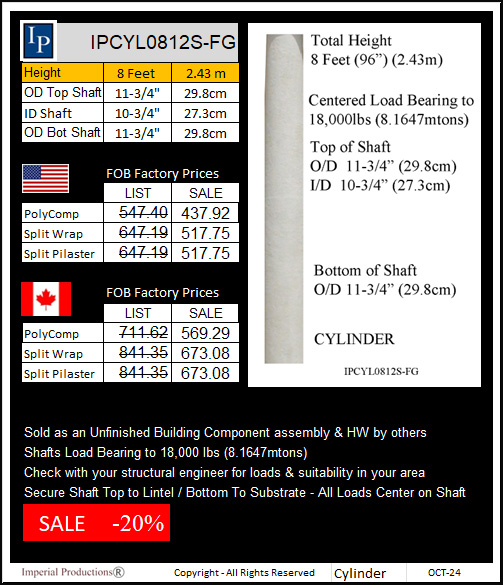

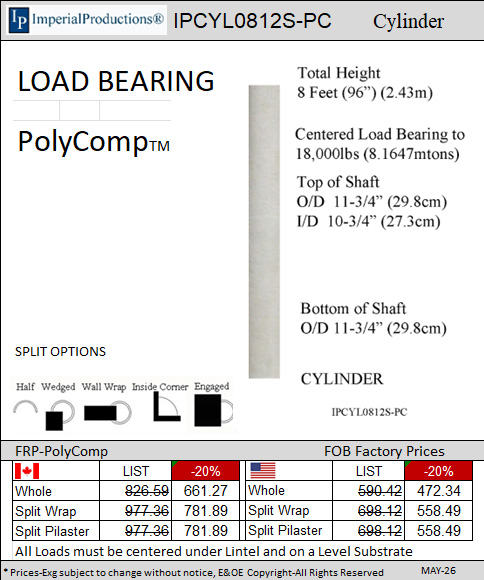

Item 6) Diameter 11-3/4" (29.8cm)	Buy Options	Materials




IPCYL0812S-PC is a 8 Feet High FRP-PolyCompTM Non Tapered Cylinder with an outside diameter of 11-3/4" (29.8cm). It is load bearing to 14,000lbs (6.35mtons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 10-3/4" (27.3cm). It is made from FRP-PolyCompTM. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

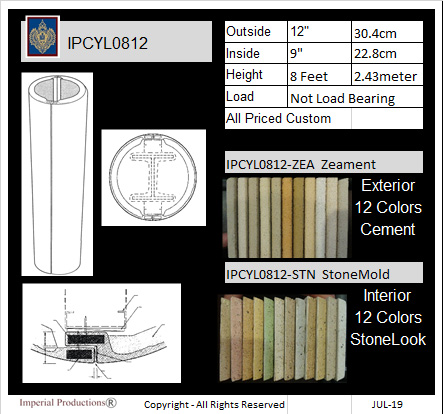

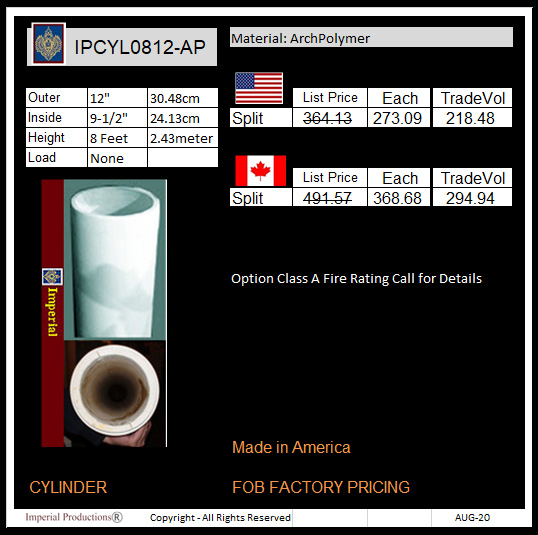

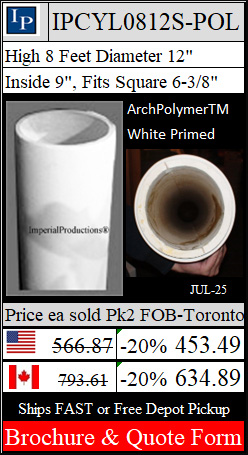

Item 7) Diameter 12" (30.48cm)	Buy Options	Materials




IPCYL0812S-POL is a Decorative 8 Feet High (2.438m) Cylinder with an outside diameter of 12" (30.48cm). Comes split for post wrap. Inner diameter is 9" (22.86cm), It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

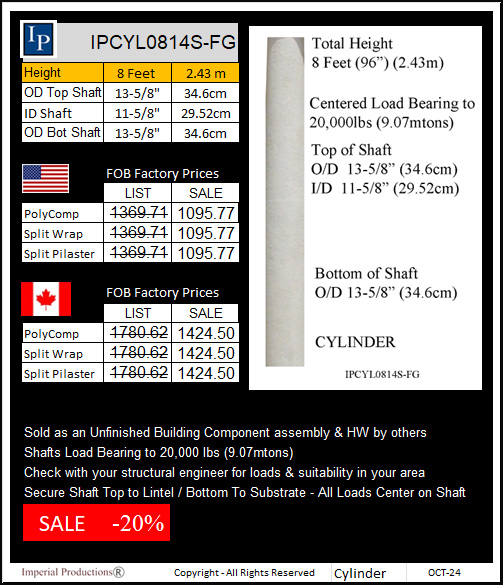

Item 8) Diameter 13-5/8" (34.6cm)	Buy Options	Materials




IPCYL0814S-FG is a 8 Feet High (2.43m) Fiberglass Cylinder with an outside diameter of 13-5/8" (34.6cm). It is load bearing to 20,000lbs (9.07 metric tons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 11" (27.9cm). Print the Brochure to request a custom quote with freight.

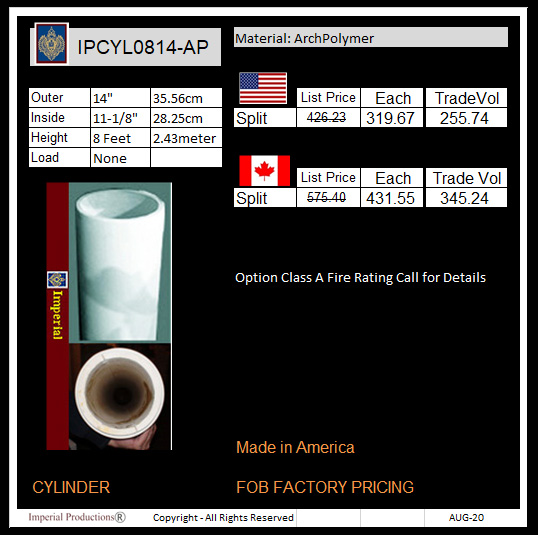

Item 9) Diameter 14-1/8" (35.87cm)	Buy Options	Materials




IPCYL0814S-POL is a Decorative 8 Feet High (2.438m) Cylinder with an outside diameter of 14-1/8" (35.87cm). Comes split for post wrap. Inner diameter is 11-1/8" (28.25cm), It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

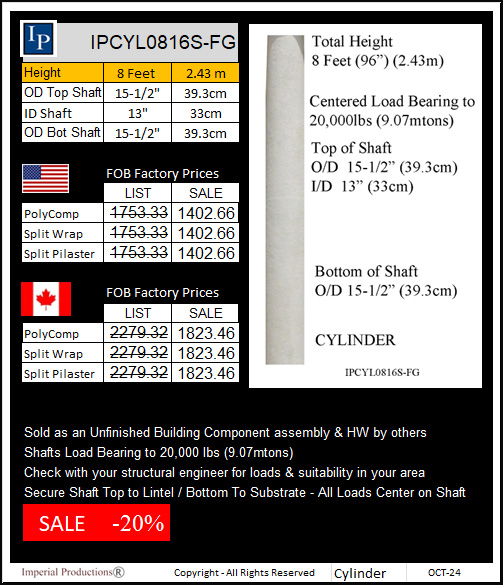

Item 10) Diameter 15-1/2" (39.3cm)	Buy Options	Materials




IPCYL0816S-FG is a 8 Feet High (2.43m) Cylinder with an outside diameter of 15-1/2" (39.3cm). It is load bearing to 20,000lbs (9.07 metric tons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 13" (33cm). It is made from Fiberglass. Print the Brochure to request a custom quote with freight.

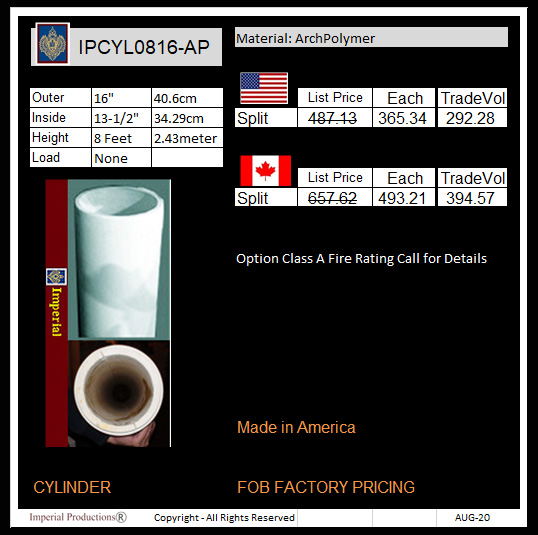

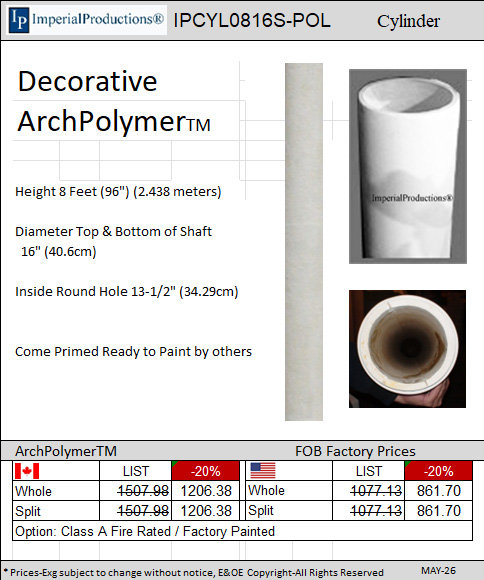

Item 11) Diameter 16" (40.6cm)	Buy Options	Materials




IPCYL0816S-POL is a Decorative 8 Feet High (2.438m) Cylinder with an outside diameter of 16" (40.6cm). Comes split for post wrap. Inner diameter is 13-1/2" (34.29cm), It is made from ArchPolymer. This cylinder can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

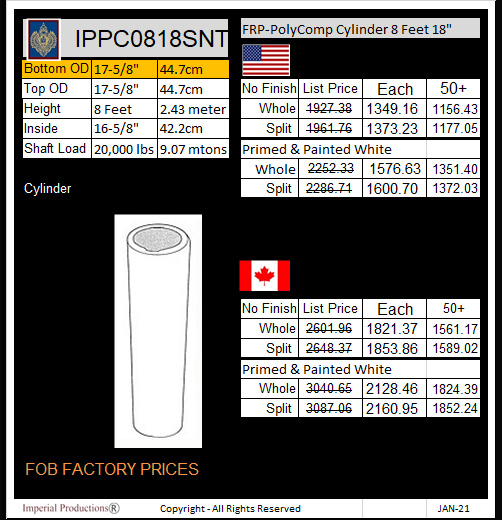

Item 12) Diameter 17-1/2" (44.4cm)	Buy Options	Materials




IPCYL0818S-FG is a 8 Feet High (2.43m) Cylinder with an outside diameter of 17-1/2" (44.4cm). It is load bearing to 20,000lbs (9.07 metric tons) with all loads must be centered on the shaft. Customize size by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. Inner diameter is 13-1/2" (34.2cm). It is made from Fiberglass. Print the Brochure to request a custom quote with freight.

How to Order Products 1-800-399-7585 +1-416-264-6096

* All Prices & specifications in this website subject to change without notice

* Prices are net, Freight, Taxes & Duties charged where applicable otherwise client is responsible for remittance

* Measurements are approximate only, Final Product may vary from this website
