Imperial Productions
®
Tuscan
Round Columns
Smooth,

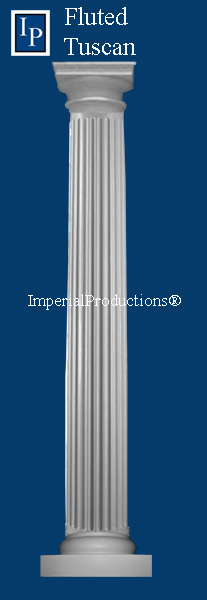

Fluted, Reeded
Load Bearing &
Decorative
|
 |
Design
Theory
Tuscan
Columns
Tuscan Order
Design Page |
|

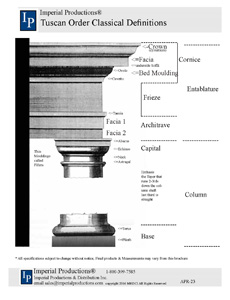

The Tuscan Order
of Columns is the simplest of the classical styles originating from the
Etruscan community in ancient Italy. They are available
load bearing or decorative. The capitals have a squared abacus above the
round echinus or one can use the more elaborate Doric Capital with a
graduated Abacus. The bases are denoted by
a round torus and square plinth. Imperial Productions®
offers Tuscan columns with Tapered or
Non-Tapered
shafts (ie stylus). Most tapered shafts have the correct entasis (ie Taper
ends 2/3rds down the stylus from the top of the shaft with the last third
being
straight.
Specify Whole or Split for Post Wrap or Pilaster applications and custom
historic duplications. Non Wood
composite columns are made from
molds which includes
FRP-PolyCompTM,
GRG-NeoPlasterTM,
Fiberglass,
ArchPolymerTM
and
GFRC-ZeamentTM.
These non-wood Tuscan columns are available 5 Feet to 30 Feet up to 36"
diameters. Custom
Hardwood Tuscan columns are made to a maximum of 36" diameter 3 to 24 Feet high in 24
hardwood species to any specified size with load bearing solid or hollow
cores. For load bearing applications we offer
White Oak Load Plugs that fit into the
hollow center of the capital or base. Finish your
Tuscan columns with Specialty
Paints and
Real Metal Coating |
 |

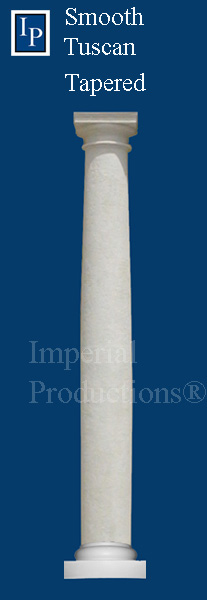

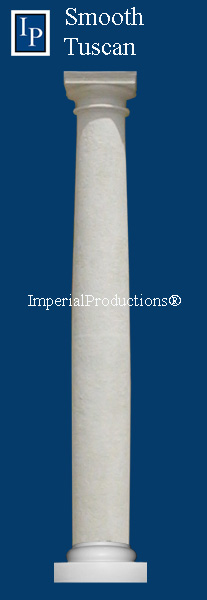

Tuscan Smooth Columns
Tapered
& Non-Tapered
Load Bearing & Decorative
click
Sizes below for prices |
|
Tapered
& Non-Tapered / Load Bearing & Decorative
click
Diameters below for prices |
 |
5 Feet
(1.524m) coming soon |
|
6 Feet (1.828m)
coming soon
|
|
8 Feet (2.438m)
coming soon |
|
9 Feet (2.743m) coming soon |
|
10 Feet (3.048m) coming soon |
|
12 Feet (3.657m) |
|
14 Feet (4.267m)
coming soon |
|
16 Feet (4.876m)
coming soon |
|
18 Feet (5.486m)
coming soon |
 |
Custom
Hardwood
Max Diameter 36", 3 to 24 Feet
Cherry, Pine, Maple, Red Oak, Alder, Mahogany etc |
 |
Ropes
with Tuscan Caps & Bases
Made from Custom
Hardwood to a maximum diameter of 36". The heights range from 3 to 24
Feet. Specify select Cherry, Pine, Maple, Red Oak, Alder, Mahogany etc
Explore
Tuscan Ropes |
|
 |
Tuscan Capitals
They are sold separately for remodeling projects. Capitals that are made in
molds use Fiberglass OR ArchPolymerTM
standard or fire rated for commercial applications. For those that
require solid capitals that are load bearing, hardwood is the specified
material, particularly white oak for exterior applications. Pine is
traditionally used for exterior use, however it is considerably softer
and less resilient to the elements. For interior decor we have 24
Hardwoods to select from including
Cherry, Alder, Maple, Red Oak, Walnut, Mahogany. All hardwood capitals
are custom made as per your measurements and can have the Square Abacus
and the round Echinus made in specified sizes.
Explore Tuscan Capitals
|
|
 |
Tuscan Bases
They are
sold separately for those that have to replace rotted column bases. The
can be ordered from ImperialProductions®
whole or split for pilaster or post wrap applications. Those bases that
are made in molds use Fiberglass OR ArchPolymerTM
standard or fire rated for interior commercial use. These hollow
bases wrap load bearing plugs or envelop column shafts. For those that
require solid bases that are load bearing, they negate the load bearing
plugs. We offer solid bases made from ZeamentTM
a portland cement composite that is also made from molds. Solid
Tuscan bases are made custom sized from Hardwood. Most architects
today specify white oak for exterior applications, noting that the
gunnels of clipper ships were made from White Oak. White Pine was
traditionally used in the past 100 years for exterior applications,
however it is considerably softer and less resilient to the elements.
For interior we have 24
Hardwood bases to select from including
Cherry, Alder, Maple, Red Oak, Walnut, Farmed Mahogany for high end
green projects. All hardwood bases are custom made as per your specified
measurements and can have the Torus or Plinth in variable sizes.
Explore Tuscan Bases
|
 |

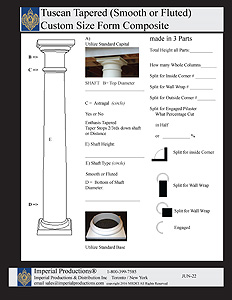

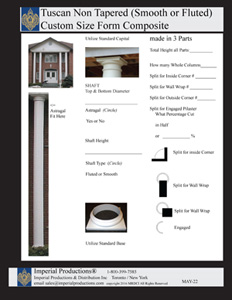

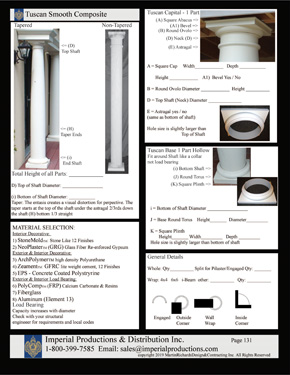

Custom Tuscan Columns
Tuscan columns can be manufactured with specific variations of Height, Diameter, and Split
Columns for pilasters, post wraps, outside corners, inside corners, and
wall wraps applications. There are variations for Tuscan Tapered and
Non-Tapered styling. Hardwoods offer the greatest flexibility of micro
size specifications. Custom column are priced as per drawing or specifications submitted.
Provide the details and we will quote them for you. There are forms in the
Custom Page click below
Explore Custom Tuscan Page
|
|
|
Post Wrap Charts
CAD
drawing for Post Wraps. How to fit a square post into a round hole.
Drawings for multiple sizes.
Explore the Charts
|
|
 |
Steel Load Posts
Custom Made to
Order
Load posts can be
ordered for post wraps. Custom made from Galvanized steel to wrap
Decorative columns.
Explore Steel Load Posts for Wraps |
|

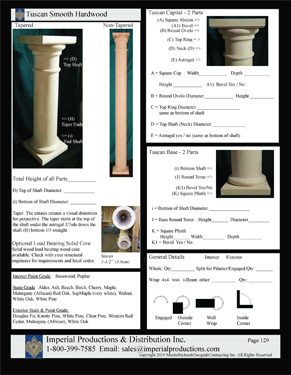

Hardwood
Hand Crafted
All parts can
be
customized
|
Hardwood
Columns
Interior Stain & Paint: American Poplar, Alder, Ash,
Basswood,
Beech,
Birch Cherry,
Maple, Maple (Sap), Mahogany-African,
Oak
(Red), Oak (White), Walnut
Exterior (Stain & Paint)
White Pine, Knotty Pine, Clear Pine, Western Red Cedar
Explore Hardwoods
|
|
Fiberglass
Interior /
Exterior
Made from
Molds |
Fiberglass
Load Bearing
Columns
Fiberglass is a
combination of
polyester resins and glass fibers with a Gelcoat covering. They are
made from molds and approximately 2-3lbs per square foot.
Fiberglass is weather resistant and is suitable for emersion in water for
fountains. The tensile strength is superior for earthquakes and hurricane zones
however they do requires to be affixed to the substrate with hardware
supplied by others. Fiberglass columns meet
ASTM-E84 fire rating standards when specified as an upgrade. They
are molded in 2 pieces and seamlessly put together when ordered whole.
Specify in halves for post wrap or pilaster applications or wedged for
corners.
Use Bondo to cover seams.
Expensive new molds are required for customization however they can be cut to height
by the factory or others.
Explore
Fiberglass
|
|
FRP-PolyCompTM
Interior /
Exterior
Made from
Molds
 |
FRP-PolyCompTM
Load Bearing
Composite Columns
FRP is 70%
calcium carbonate, 5% marble chips, 25% Polyester Resins.
Meets
ASTM-E84 fire rating. Specify in halves for post wrap or pilaster
applications or wedged for corners. Expensive new molds are
required for customization however they can be cut to height by the
factory or others.
Explore
FRP-PolyCompTM
|
|
ArchPolymerTM
Interior /
Exterior
Made from
Molds |
ArchPolymerTM
Decorative Columns
ArchPolymerTM
is a
synthetic wood with the same consistency as white pine. It is not a
plastic. It is rot, water and insect resistant, cuts like wood and
comes white primed. Class A Fire Rating is an upgrade that can be
specified to put into the mix. They are molded in 2 pieces. Use
our PolySpackling Compound to cover any seams. They can be cut to height
by the factory or others. For custom sizes for volume orders request a
quote.
Explore
ArchPolymerTM
|
|
GRG-NeoPlasterTM
Made from
Molds
|
GRG-NeoPlasterTM
Decorative
Interior Columns
Alpha gypsum, cement, water, re-enforced with glass
fibers.
Lite weight 2-3lbs
per square foot. Meets ASTM-E84 Fire rated.
Odorless and
emission free. Interior use only in dry areas.
Made in a
mold in 2 pieces - tape & mud seam.
Customization
by cutting bottom of the shaft
Explore
GRG-NeoPlasterTM
|
|
Watch our YouTube Video
|
GFRC-ZeamentTM
Attic
Bases
To replace rotted or
broken bases,
GFRC-ZeamentTM
is the perfect solution! It is a composite of Portland cement and
polymers producing a smooth exterior finish. It is strong, heavy and
load bearing. The Torus and Plinth are hollow, however the Plinth is
wide enough to carry column loads. Custom sizes are available from 6" to
48" diameter. Large bases are made in 2 parts Torus and Plinth or split for reassembly around an
existing column
shaft.
Explore GFRC-Zeament
|
|
|
Real
Metal Coating
All of the column materials can be coated
with real metal. This applies particularly to captials and bases.
We have done real metal coating on column shafts as well
Explore Real Metal Coating
|
|
|
Metallic
Paints
For finishing shops or the DIY client, we
offer Ronan Aqua Leaf Real Metal Paints. Apply with an air brush or
regular brush for highlighting golds, silvers and bronzes.
Explore Ronan Paints
|
|
How to
Order Products
