Tuscan Style Columns

Imperial Productions ®

Tuscan Smooth Round Column

16 Feet 16" Diameter Collection

4.876 meters 40.64cm

Collection of 16 Feet 16 inch diameter at the bottom of the Stylus or Shaft. Tuscan Smooth Columns are complete with capitals and bases. The Tuscan Order of Columns is the simplest of the classical styles. The bases are denoted by a round torus and square plinth. Imperial Productions® offers Tuscan columns with Tapered or Non-Tapered shafts (ie stylus). Most tapered shafts have the correct entasis (ie Taper ends 2/3rds down the stylus from the top of the shaft with the last third being straight. Models include load bearing or decorative. Specify whole or Split for Post Wrap or Pilaster applications. Materials made from molds include composite FRP-PolyCompTM, Fiberglass, ArchPolymerTM. Custom Hardwoods are made to a maximum of 36" diameter 3 to 24 Feet high in 24 hardwood species to any specified size.

Fast

Track

Tapered

Non-Tapered

Not Available

Tapered 16" Diameter (40.64cm)

Item 1) Diameter 15-1/2" (39.3cm)	Buy Options	Materials

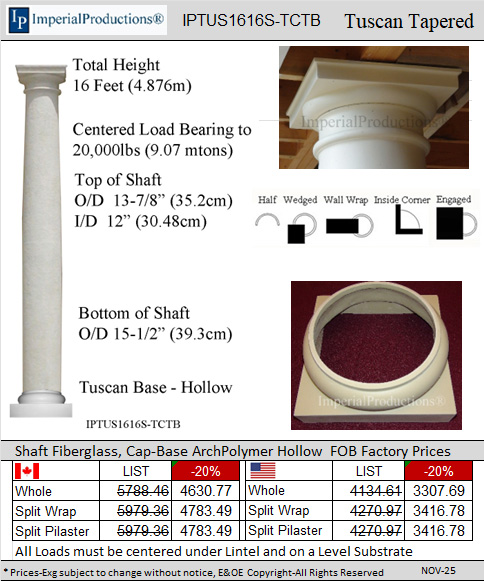

IPTUS1616S is a 16 Feet High Fiberglass Tuscan Column Tapered meaning the top of the shaft (13-7/8") is smaller than the bottom diameter of the shaft (15-1/2"). By convention the taper ends 1/3rd from the shaft bottom. The capital and base are hollow with the load bearing shaft sitting on the level substrate. All loads must be centered on the shaft. The astragal is integrated in the column. Customize by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. It can wrap a (11" Round Post) or a (8" x 8" Square Post). This column can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

Tuscan Capital is Included in the price

The capital free floats and sits above the necking of the shaft. It is hollow and does not bear any loads since the shaft takes the loads from the lintel to the substrate. This capital is made from ArchPolymerTM a high density polyurethane which is rot water and insect resistant. It comes primed white ready to paint by others. Order split for multiple options.

Tuscan Base is Included in the Price

The base free floats around the 15-1/2" bottom of the shaft. It is hollow it does not bear any loads since the shaft takes the loads from the lintel to the substrate. This base is made from ArchPolymerTM a high density polyurethane which is rot water and insect resistant. It comes primed white ready to paint by others. Order split for multiple options.

IPTB16 covers 15-1/2" Column

Customization of Tuscan Columns

Tuscan columns can be manufactured with specific variations of Height, Diameter, and Split Columns for pilasters, post wraps, outside corners, inside corners, and wall wraps applications. There are variations for Tuscan Tapered and Non-Tapered styling. Hardwoods offer the greatest flexibility of micro size specifications.

Custom column are priced as per drawing or specifications submitted. Provide the details and we will quote them for you send to email sales@imperialproductions.com

Custom Request Form: Hardwood Tapered

Click to Print Custom Form

Note About our Custom Department

Specify Heights to 24 Feet, with Diameters to 36 inches. Hardwood columns are available Whole or with Split Variations

Custom column are priced as per drawing or specifications submitted

Provide the details and we will quote them for you send to email sales@imperialproductions.com

Custom Hardwood Non-Tapered

Click to Print Custom Form

Note About our Custom Department

Specify Heights to 24 Feet, with Diameters to 36 inches. Hardwood columns are available Whole or with Split Variations

Custom column are priced as per drawing or specifications submitted

Provide the details and we will quote them for you send to email sales@imperialproductions.com

Custom Composite Tapered

Click to Print Custom Form

Note About our Custom Department

One can specify Heights, Diameters, and Split Variations for

columns made from ArchPolymerTM, FRP-FiberComp

Custom column are priced as per drawing or specifications submitted

Provide the details and we will quote them for you

send to email sales@imperialproductions.com

Custom Composite Non-Tapered

Click to Print Custom Form

Note About our Custom Department

One can specify Heights, Diameters, and Split Variations for

columns made from ArchPolymerTM, FRP-FiberComp

Custom column are priced as per drawing or specifications submitted

Provide the details and we will quote them for you

send to email sales@imperialproductions.com

FAQ & Install Notes
	FAQ-Column Page Provides commonly asked questions about columns and installing columns. It is a continuous dialog about column subjects
	Install notes for Load Bearing Columns Explore creating substrate and installation of FRP-PolyCompTM Columns
	Explore this Youtube video that speaks to solutions for Rotted column bases.
	Explore this Youtube video that covers cutting the height of a composite column made from
	Article on how to prolong wood products
