Doric Style Columns 12 Feet 12 inch diameter Imperial Productions ®

Doric Smooth Round Column

12 Feet 12" Diameter Collection

3.657 meters, 30.48cm Diameter

Fast

Track

Tapered

Non-Tapered

Collection of 12 Feet 12 inch diameter at the bottom of the Stylus or Shaft. Doric Smooth Columns are complete with Doric capitals and Attic bases. Imperial Productions® offers Doric columns with Tapered or Non-Tapered shafts (ie stylus). Most tapered shafts have the correct entasis (ie Taper ends 2/3rds down the stylus from the top of the shaft with the last third being straight. Models include load bearing or decorative. Specify whole or Split for Post Wrap or Pilaster applications. Materials made from molds include composite FRP-PolyCompTM, GRG-NeoPlasterTM, Fiberglass, ArchPolymerTM and GFRC-ZeamentTM. Custom Hardwoods are made to a maximum of 36" diameter 3 to 24 Feet high in 24 hardwood species to any specified size.

Tapered 12" Diameter (30.48cm)

Item 1) Diameter 11-5/8" (29.5cm)	Buy Options	Materials

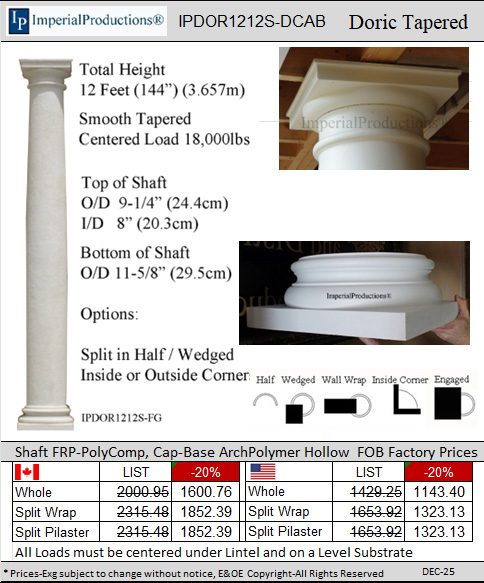

IPDOR1212S is a 12 Feet High FRP-PolyCompTM Doric Column Tapered meaning the top of the shaft (9-1/4") is smaller than the bottom diameter of the shaft (11-5/8"). Each shaft weighs 154lbs. By convention the taper ends 1/3rd from the shaft bottom. The Doric capital and Attic Base are hollow with the load bearing shaft sitting on the level substrate. All loads must be centered on the shaft. The astragal is integrated in the column. Customize by optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for an outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. This column can be ordered FactoryPainted or components can be RealMetalCoated, or FireRated. Print the Brochure to request a custom quote with freight.

Doric Capital is Included in the price

IPDC12-CAP is a Doric Capital molded as 1 piece (Stepped Abacus & Round Echinus). The hole fits around a 9-1/4" round top of column (approximate 9-1/2" hole size). The column's load from the lintel resides on the substrate. The capital does not hold load. It is made from ArchPolymerTM a lite weight composite material rot water and insect resistant for interior and exterior. Customize with optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. This capital can be ordered FactoryPainted or components can be RealMetalCoated.

IPDC12-CAP Doric Capital IPDC12-CAP Drawing

Attic Base is Included in the Price

IPAB12 is an Attic Style Base for Neo-Classical Style Columns. They are hollow with a 11-3/4" hole ready to wrap the bottom of the column shaft of 12-1/2". It is made from ArchPolymerTM a lite weight composite material rot water and insect resistant for interior and exterior. Customize with optional factory cuts. Specify Split for Pilaster up against a wall, Split for Post wrap, Wedged for outside corners, Section cut for Wall Wraps - specify the size, Quartered for inside corners, or Engaged for portion cuts for Pilaster applications. This base can be ordered FactoryPainted or components can be RealMetalCoated.

Attic Base 12 with 11-3/4" hole Attic base IPAB12 drawing Attic Base IPAB12 with 11-5/8" hole

Non-Tapered 12" Diameter (30.48cm)
