Round
Tuscan Bases
Hardwood
up to 10 Feet Diameter
Composite
and GFRC-ZeamentTM
45
Standard Sizes &
Custom Sizes
|
How
to Know What Size Base is Needed
|
|
Measure the
circumference of the bottom of the shaft before it engages the base. To
size the base, the best way is to tape a piece of string to one side of
the shaft, go all the way around the circle. The length of the string is the
circumference of the bottom of the shaft. The formula is the length x 3.14 which
equals the diameter. The hole should be 1/4" larger than the shaft
diameter. Select from
the standard models below or order custom sized. |
|
All
About Tuscan Bases
|
 |
 |
 |
|
Tuscan
Bases are used with the classical Order of Tuscan created by the Etruscans (6th
Century BC). They have one
rounded profile (Torus) that sits on a
square (Plinth) Imperial Productions®
offers them Load
Bearing made from
exterior hardwood staves
glued together as done for the past 200 years. Select from exterior woods White
Pine, White Oak, Western Red Cedar. The maximum diameter
of the Torus is 36" (91.44cm)
with any size of Plinth. Order 1 or 2
parts to any custom size and even parts of the column shaft that may be
rotted.
Decorative
Tuscan Bases are
hollow and do not hold load. They envelop a load bearing plug
or the column shaft that supports the column's weight. All are made from
molds available split or whole. They are made from
ArchPolymerTM
which is rot water and insect resistant for interior & exterior use,
GRG-NeoPlasterTM
for interior use and
GFRC-ZeamentTM
a Portland Cement composite for commercial or high traffic areas. |
|
SPLIT BASES FOR COLUMN WRAPS |
|
All of our bases can
be ordered split for column wrap.
ArchPolymerTM
bases can be split down the middle or on the diagonal. You will loose the thickness of the
blade once cut. Always use the approved adhesive and poly spackling compound to cover the
seam. For
GFRC-ZeamentTM
we recommend
ordering them precut, however if you cut them yourself we suggest a
diamond blade. |
|
Issue: The bases of the columns are rotted and need to be replaced
Solution: an
Economical Approach for non National Trust Buildings |
|
The traditional base
is solid wood and holds the load of the column shaft. For historic buildings we
can create exact reproductions. For average homes where
there are economic constraints, you can order a white oak a load bearing
plug to hold the shaft weight and cover it with one of our composite bases split
to encapsulate the load bearing plug. The hole size
of the decorative base should be slightly
larger than your load bearing plug accounting for the thickness of the blade if
you have to cut the base in half to wrap the plug. |

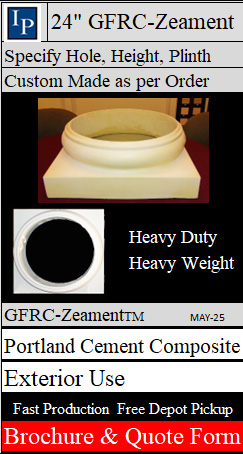

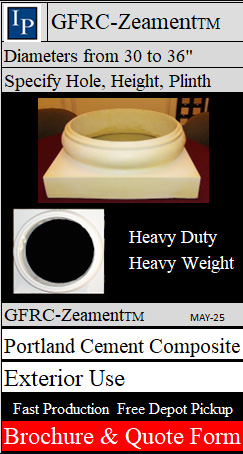

Custom Size Fill in Forms
|
CUSTOM
COMPOSITE
|
|
Composites
are created with new molds. These hollow Tuscan Bases serve as decorative elements to wrap
load bearing posts
Select from the
following Materials
ArchPolymerTM
a lite weight synthetic wood Interior & Exterior
GRG-NeoPlasterTM
- A gypsum based Composite for interior use
GFRC-ZeamentTM-
A concrete based Composite for exterior use |
 |
<= Click the PDF Form
Fill in Measurements and Specify the Material
Custom Bases are priced as per
mold charge and
number of units
required
send
the form by email to
sales@imperialproductions.com
click for
Non Wood Tuscan Custom Page
|
The
Standard Collection
|
A)
Hole or Flat 4" to
6-7/8"
|
|
|
1 of 45 |

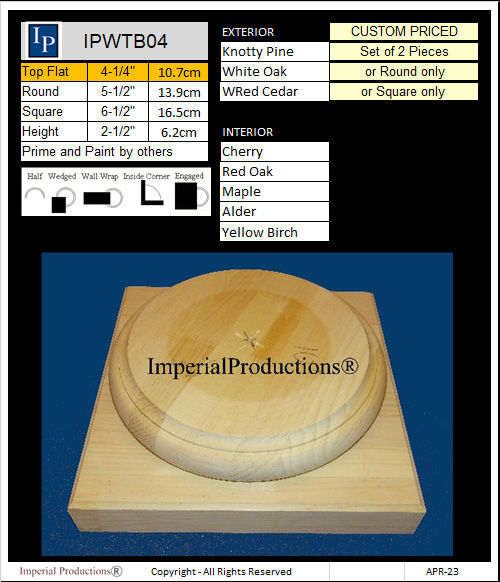

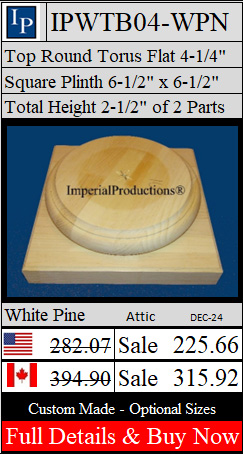

Torus Top Flat Round
Diameter 4-1/4"
Fits
Column 4" Diameter = Circumference 12-1/2" |
|
|
2 of 45 |

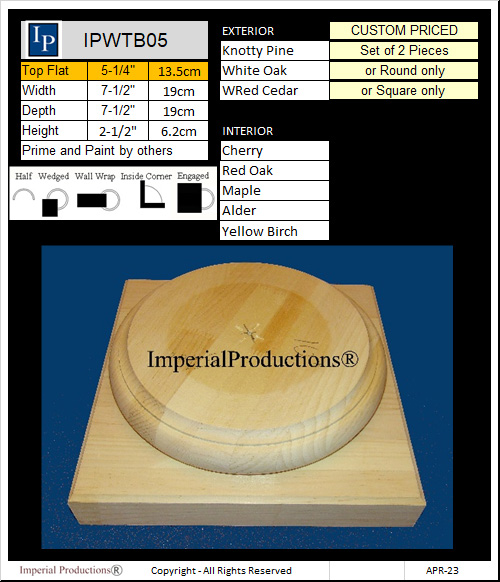

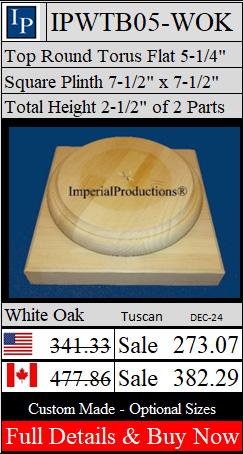

Torus Top Flat Round
Diameter 5-1/4"
Fits
Column 5" Diameter = Circumference 15.7" |
|
|

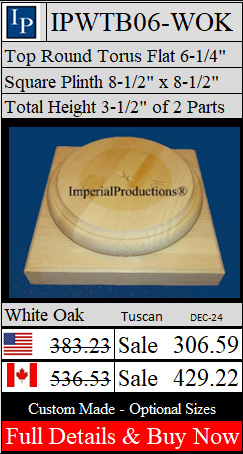

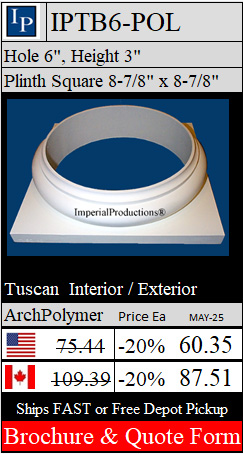

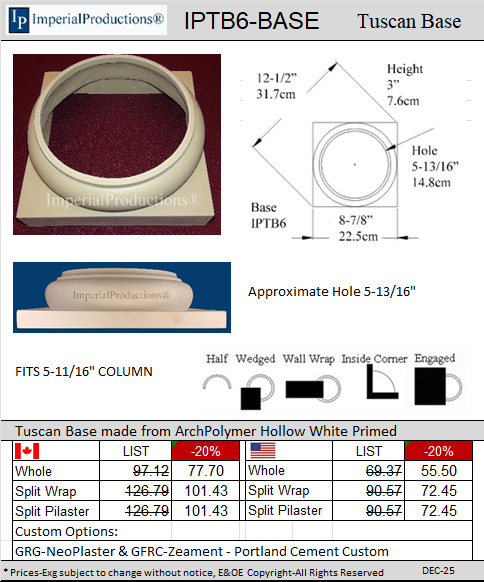

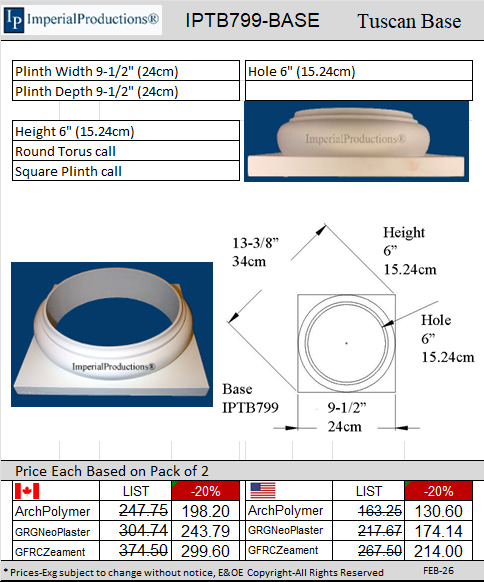

6 of 45 |

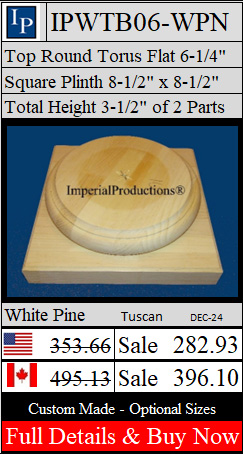

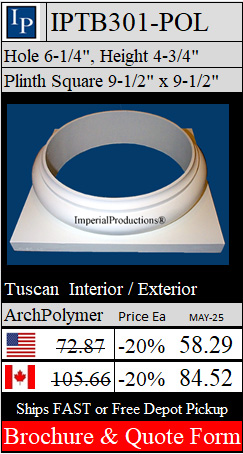

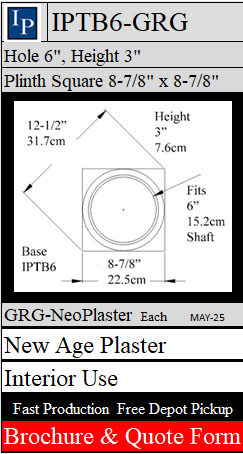

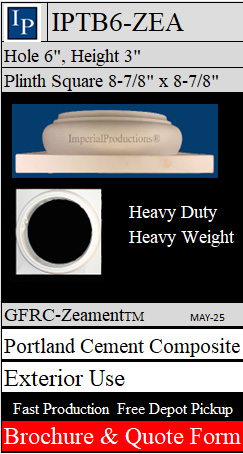

Torus Top Flat Round
Diameter 6-1/4"
Fits

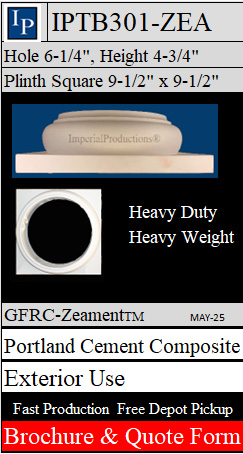

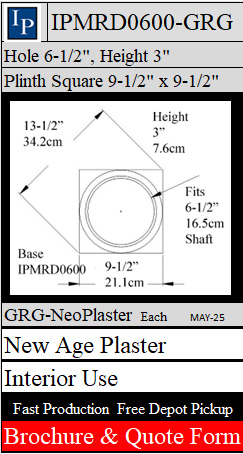

Column 6" Diameter = Circumference 18.85" |
|
|

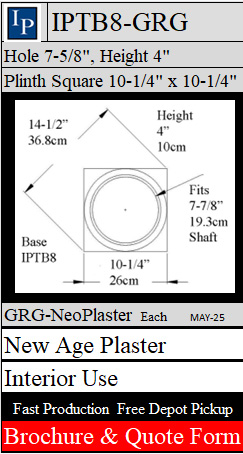

B)
Hole or Flat 7" to 8-7/8"
|
|
|

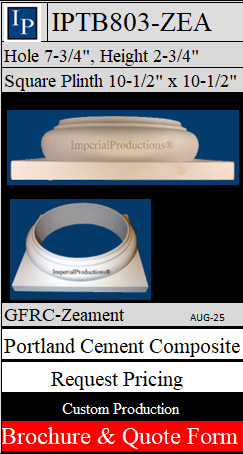

9
of 45 |

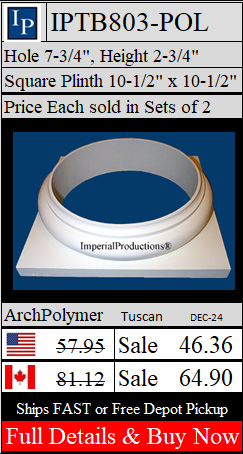

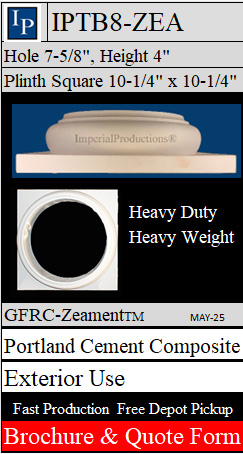

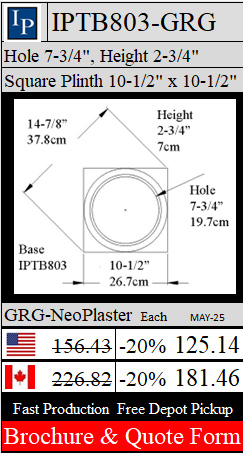

Hole 7-3/4"
Fits

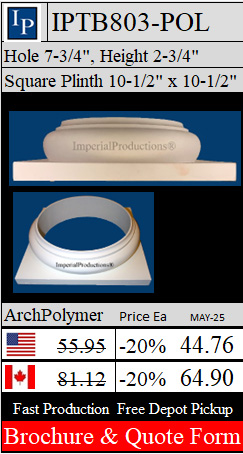

Column 7-1/2" Diameter = Circumference 23.56" |
|
|

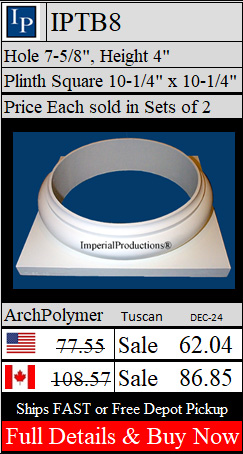

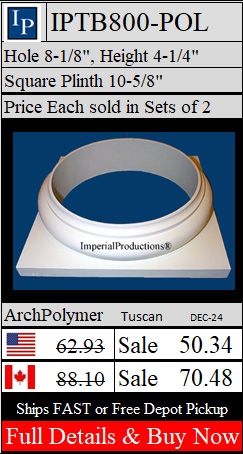

10
of 45 |

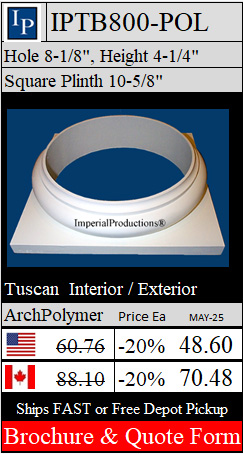

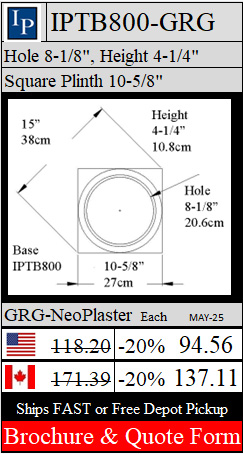

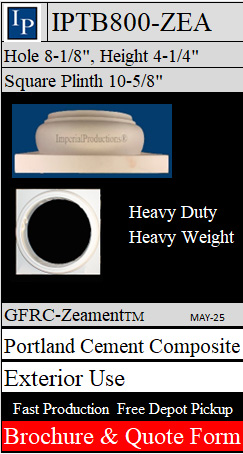

Hole 8-1/8"
Fits
Column 7-3/4" Diameter = Circumference 24.34" |
|
|

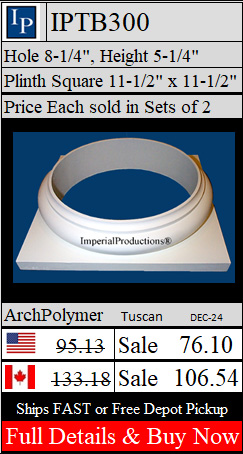

12
of 45 |

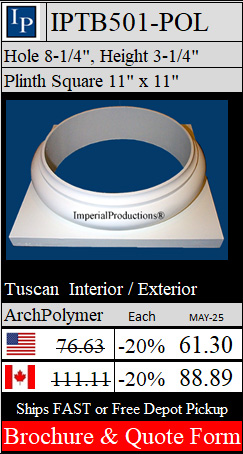

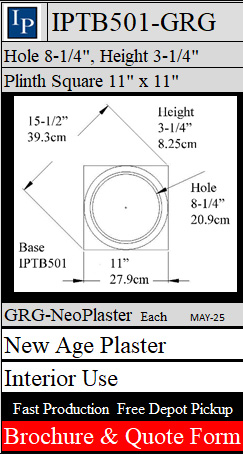

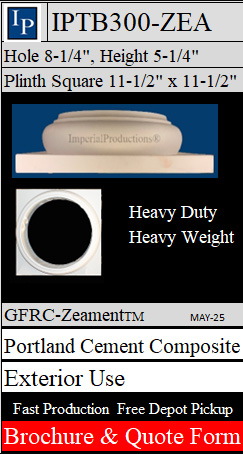

Hole 8-1/4"
Fits
Column 8" Diameter = Circumference 25.13" |
|
|

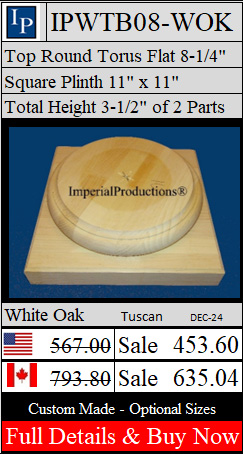

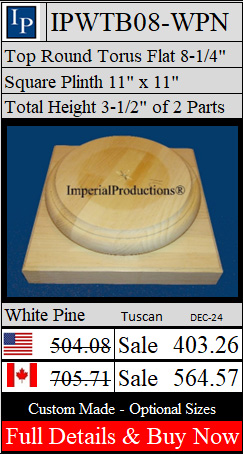

13
of 45 |
Torus Top Flat Round
Diameter 8-1/4"
Fits
Column 8" Diameter = Circumference 25.13" |
|
|
C)
Hole or Flat 9" to 10-3/4"
|
|
|

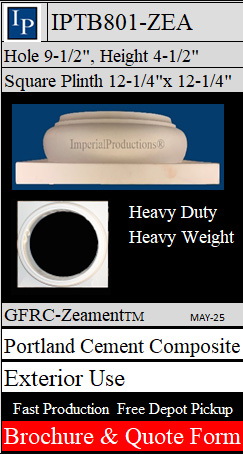

15
of 45 |

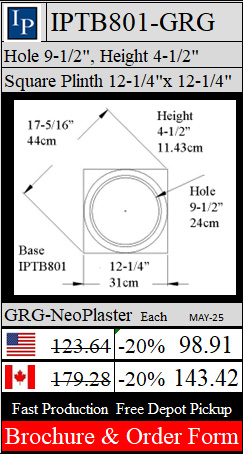

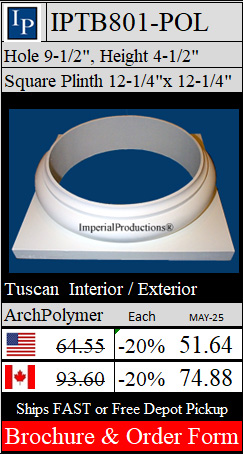

Hole 9-1/2"
Fits
Column 9-1/4" Diameter = Circumference 29" |
|
|
16 of 45 |

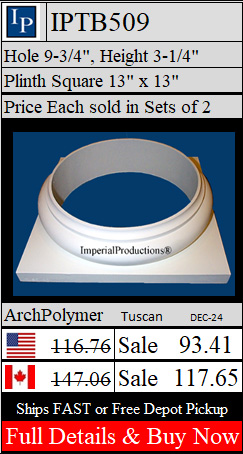

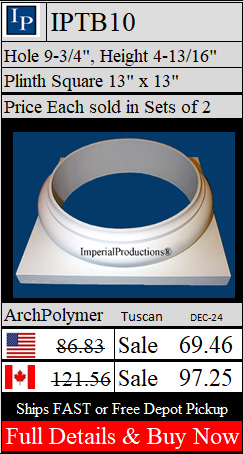

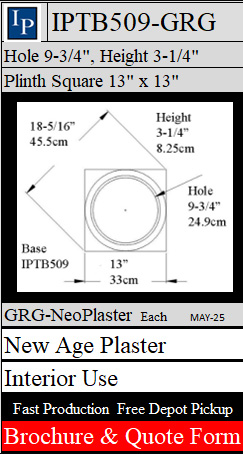

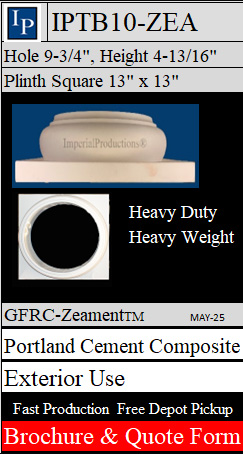

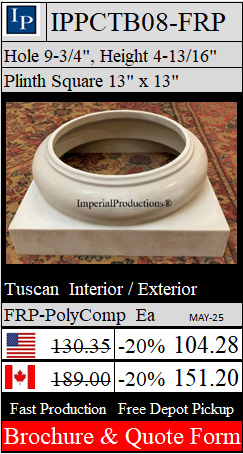

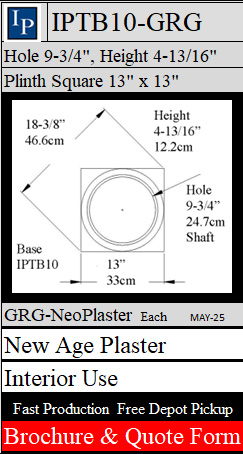

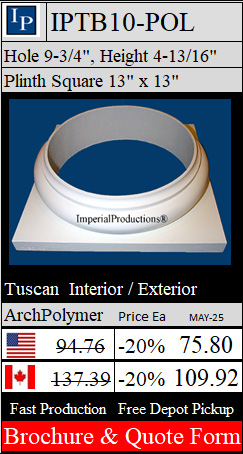

Hole 9-3/4"
Fits
Column 9-1/2" Diameter = Circumference 30.6" |
|
|

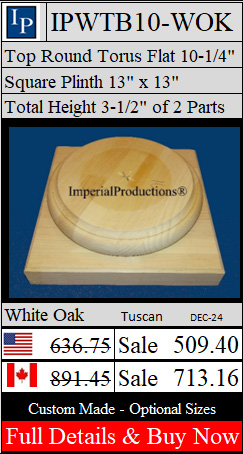

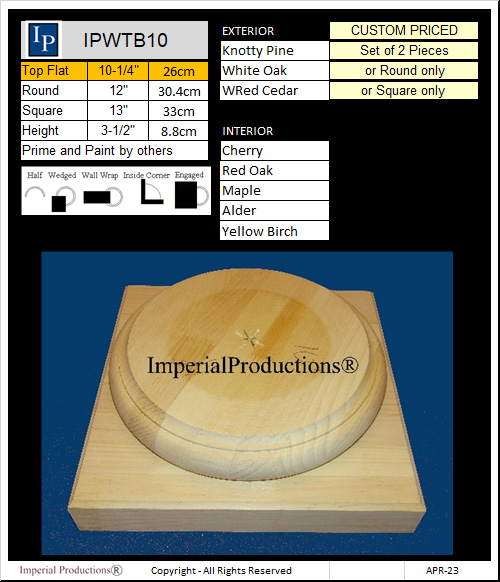

19
of 45 |

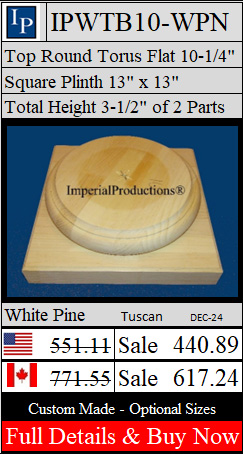

Torus Top Flat Round
Diameter 10-1/4"
Fits
Column 10" Diameter = Circumference 31.41" |
|
|

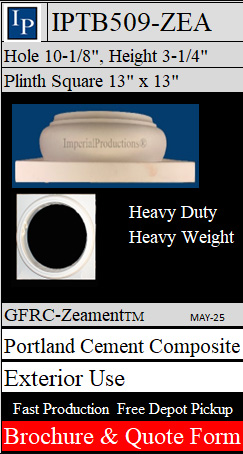

20
of 45 |

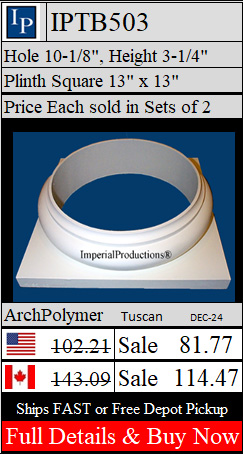

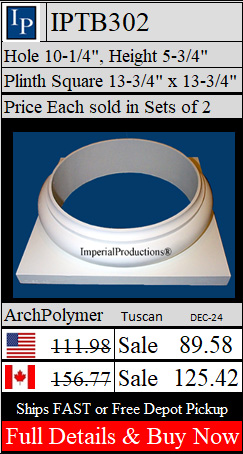

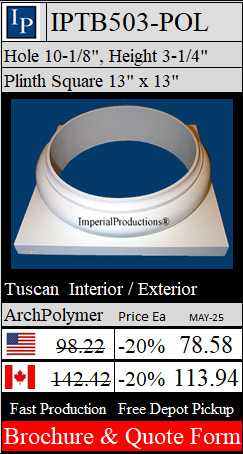

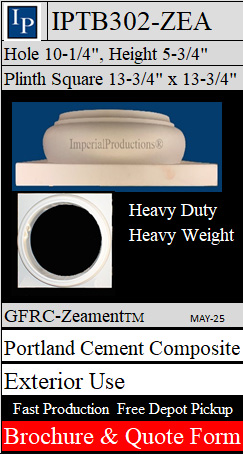

Hole 10-1/4"
Fits
Column 10" Diameter = Circumference 31.41" |
|
|
D)

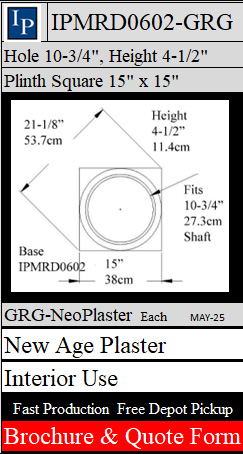

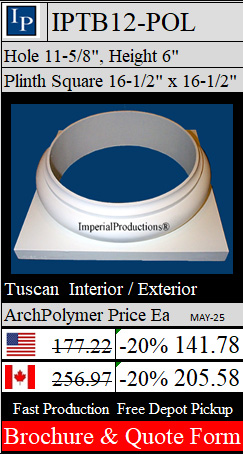

Hole or Flat 11" to 11-3/4"
|
|
|

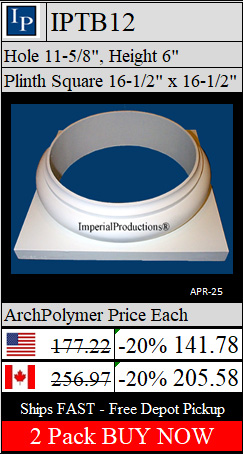

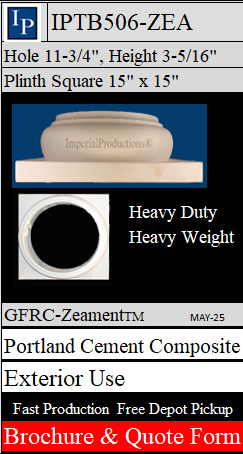

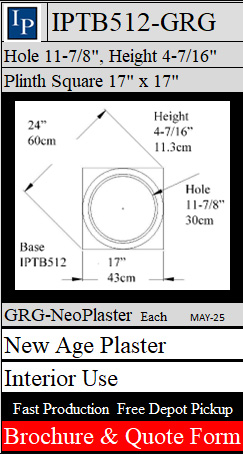

23
of 45 |

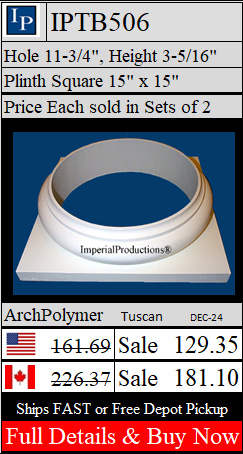

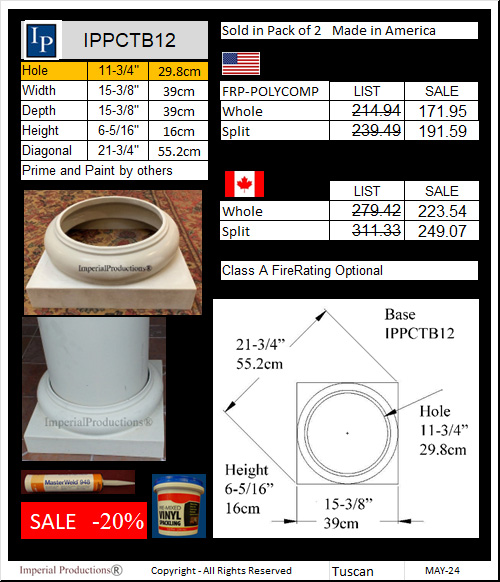

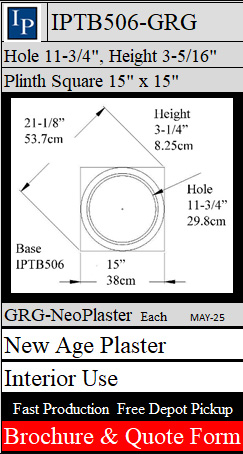

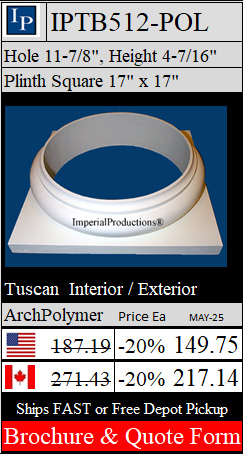

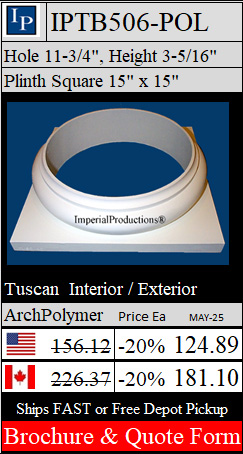

Hole 11-7/8"
Fits
Column 11-3/4" Diameter = Circumference 36.9" |
|
|
E) Hole or Flat 12" to 13-7/8" |
|
|
25
of 45 |

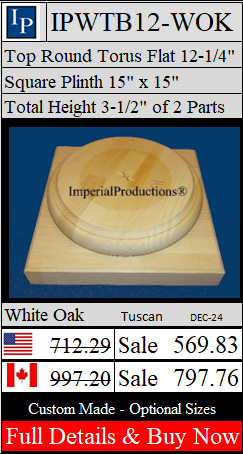

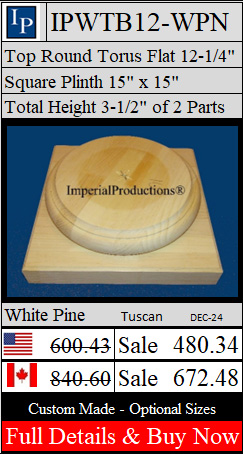

Torus Top Flat Round
Diameter 12-1/4"
Fits
Column 12" Diameter = Circumference 37.7" |
|
|

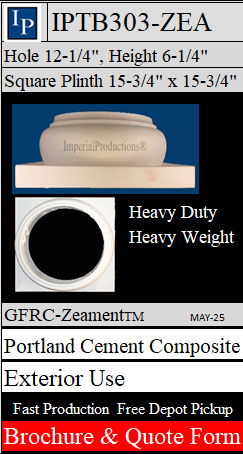

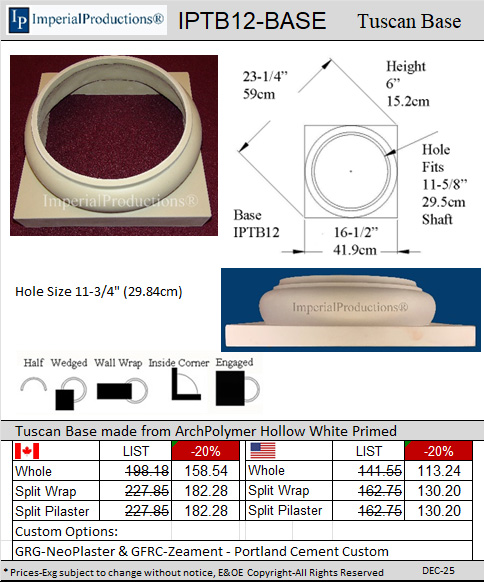

26
of 45 |

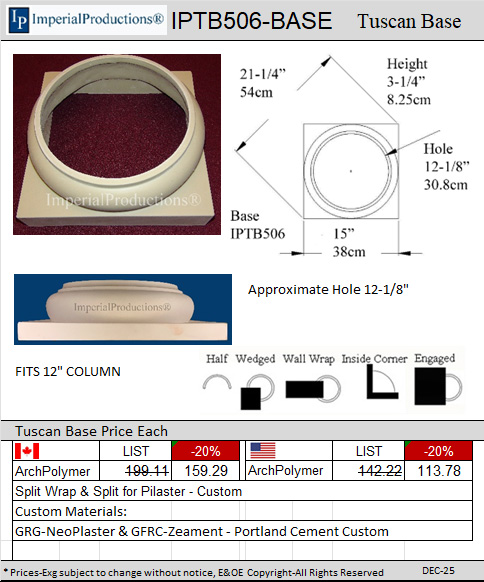

Hole 12-1/4"
Fits

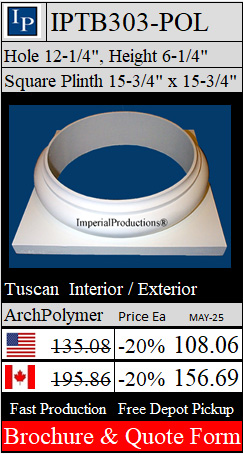

Column 12" Diameter = Circumference 37.7" |
|
|
27
of 45 |

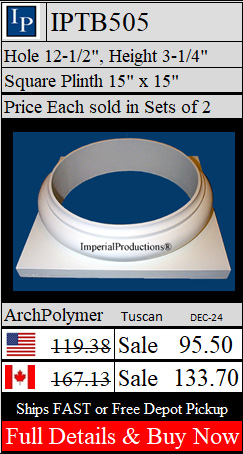

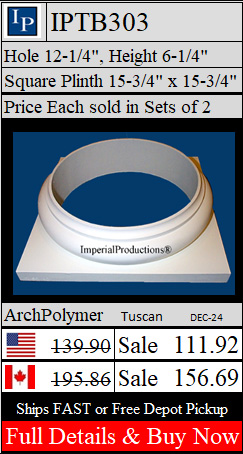

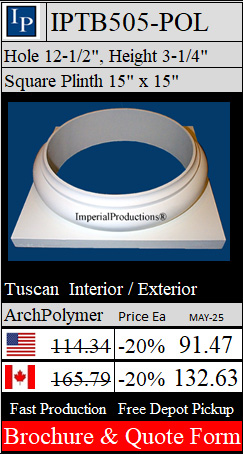

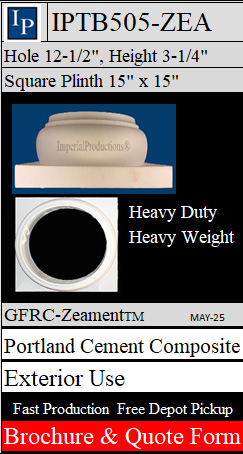

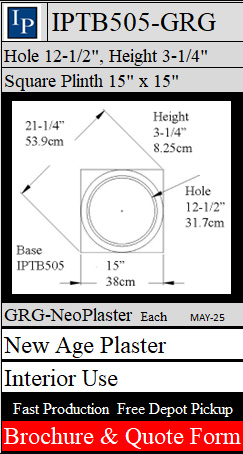

Hole 12-1/2"
Fits
Column 12-1/4" Diameter = Circumference 38.48" |
|
|
F)
Hole or Flat 14" to 16-7/8"
|
|
|

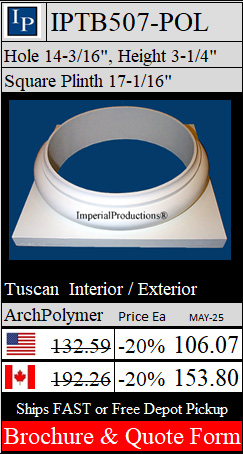

30
of 45 |

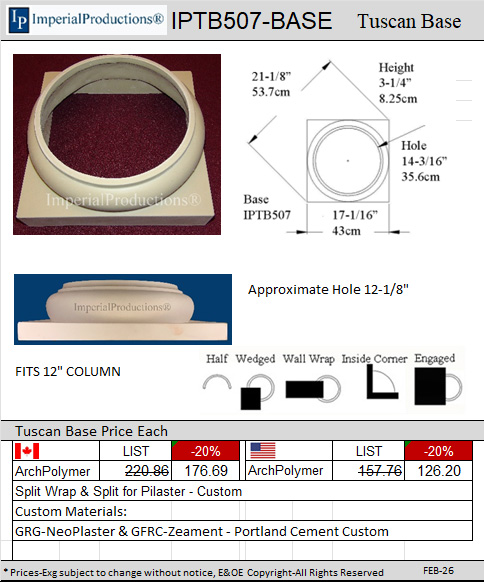

Hole 14-3/16"
Fits

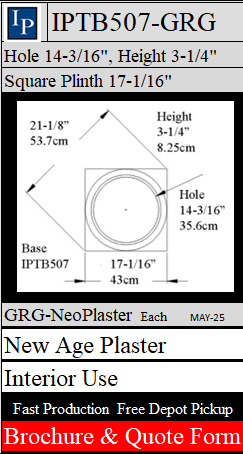

Column 14" Diameter = Circumference 44" |
|
|

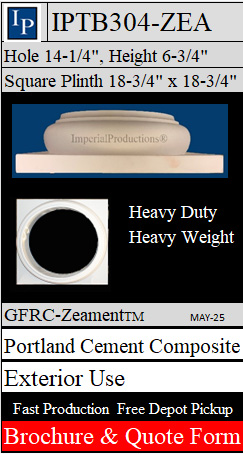

31
of 45 |

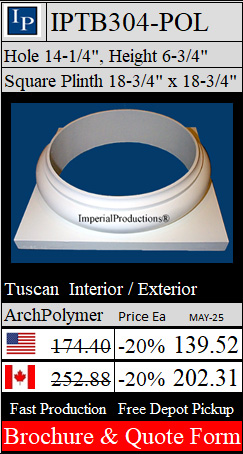

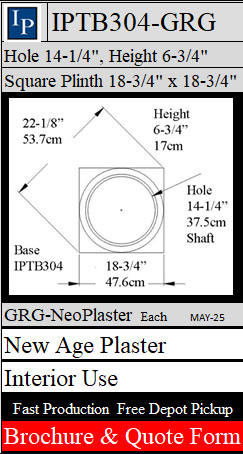

Hole 14-1/4"
Fits
Column 14" Diameter = Circumference 44" |
|
|
32
of 45 |
Hole 14-1/4"
Fits
Column 14" Diameter = Circumference 44" |
|
|

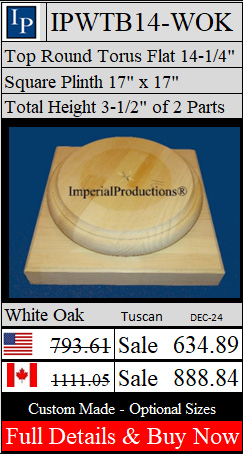

33
of 45 |

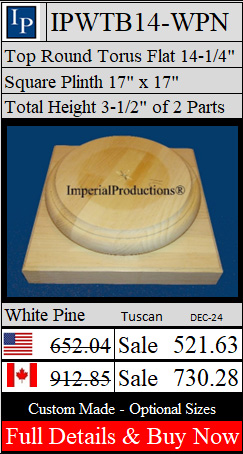

Torus Top Flat Round
Diameter 14-1/4"
Fits
Column 14" Diameter = Circumference 44" |
|
|

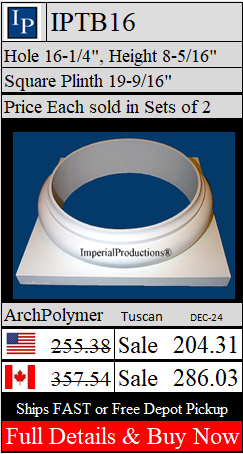

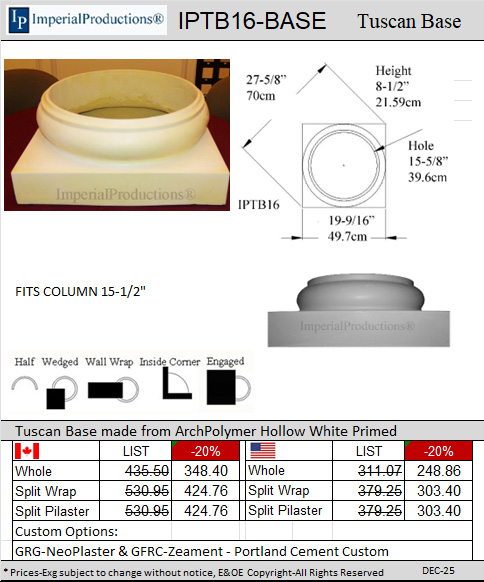

35
of 45 |

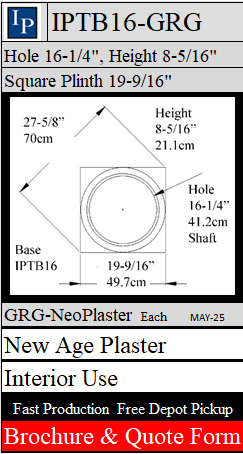

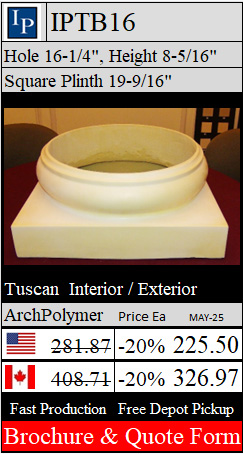

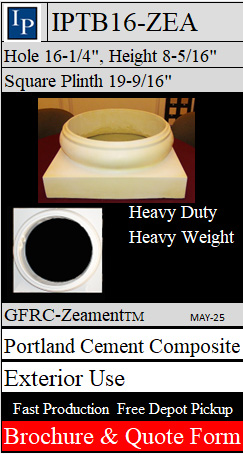

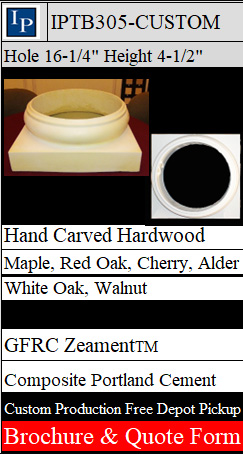

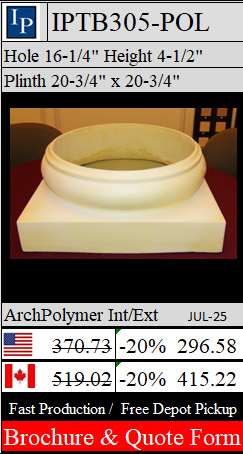

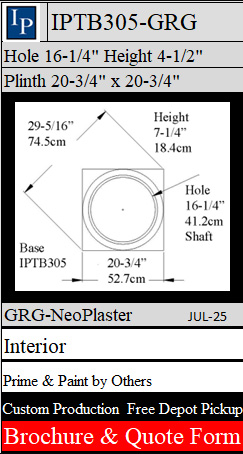

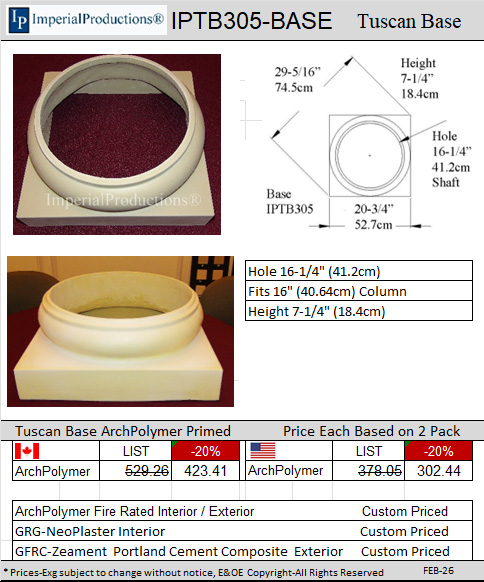

Hole 16-1/4"
Fits
Column 16" Diameter = Circumference 50.26" |
|
|

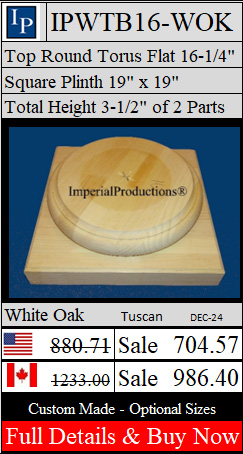

36
of 45 |

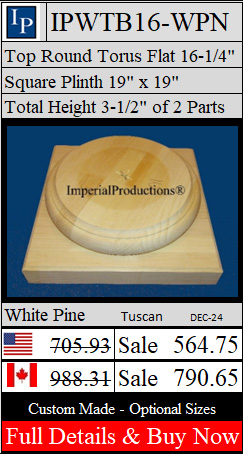

Torus Top Flat Round
Diameter 16-1/4"
Fits
Column 16" Diameter = Circumference 50.26" |
|
|

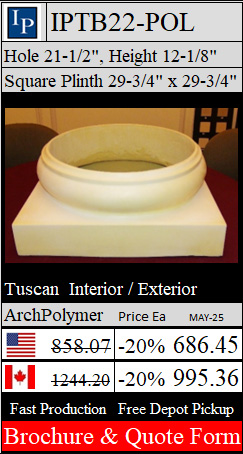

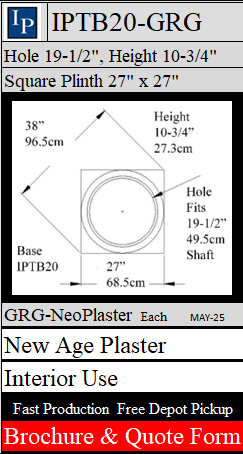

G)

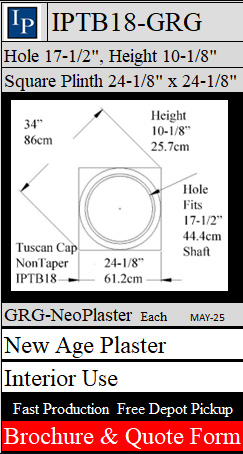

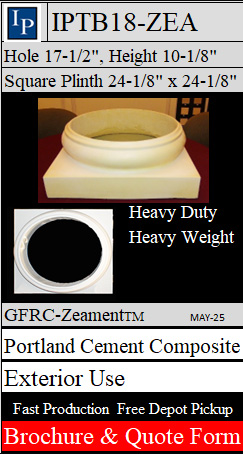

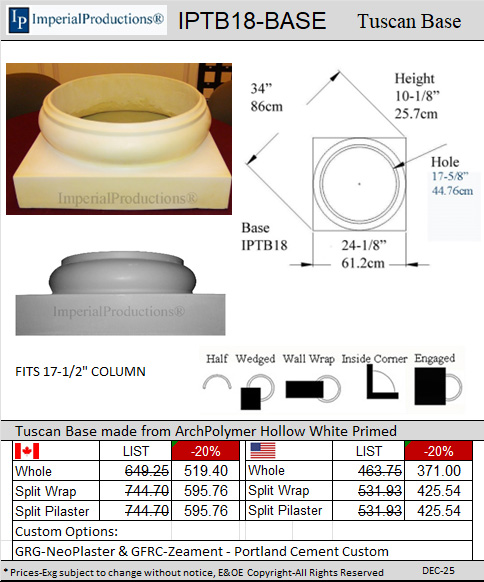

Hole or Flat 17" to 23-7/8"
|
|
|

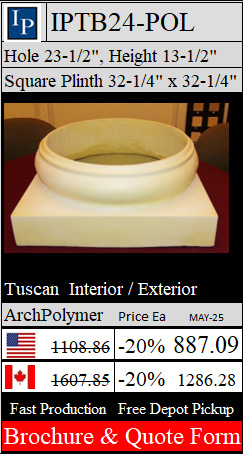

H)

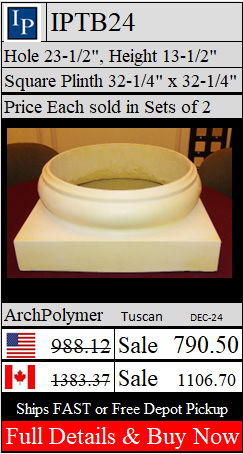

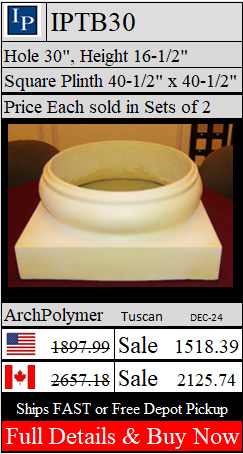

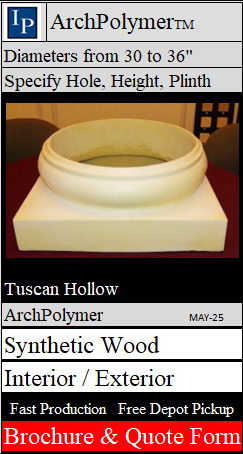

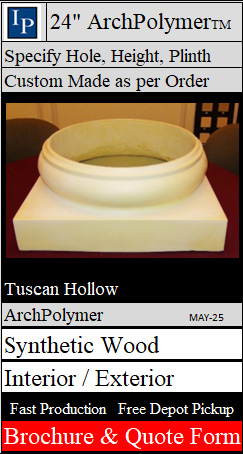

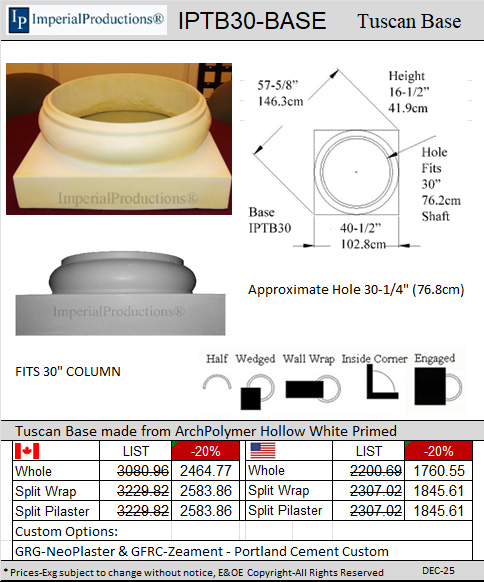

Hole or Flat 24" to 36"
|
|
|
42
of 45 |
Hole 28"
Fits
Column 27-1/2" Diameter = Circumference 86.39" |
|
|

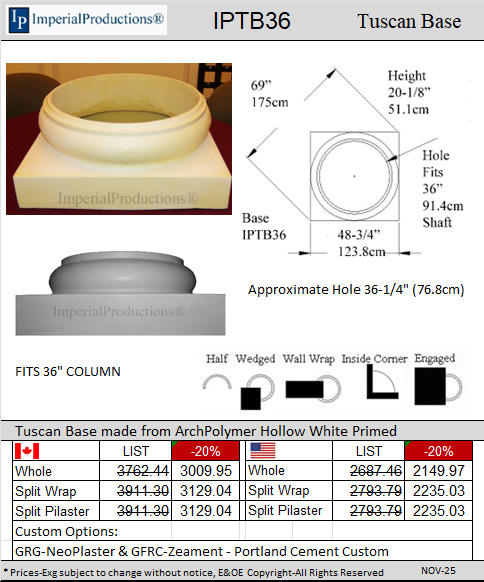

Tuscan Torus Base 36" to 10 Feet
|
|

Moulding Wrap
to Replace Broken Torus |
|

|
For
those that have a broken Torus here are two SuperWiggly ResinMold®
casings.
Remove the rotten round portion, provide us with the circumference of the
existing Torus and apply your SupperWiggly ResinMold®
|
|
24 Hardwoods
Fully
Customizable &
Historic
Recreations
|
 |
|
