 Imperial Productions
®
Scamozzi
Style Capitals
Roman
Ionic Order
Sorted by Hole Size
|
Scamozzi
Capital Historic Reproduction
|
|
|
<= Watch our
YouTube video on
an
historic Reproduction
of a
Scamozzi Capital
for a
commercial building |
|
All
About the Scamozzi
Style 4 Scroll
Ionic Capitals |
 |
click
for Design Theory
Page
The
Ionic Order |
|

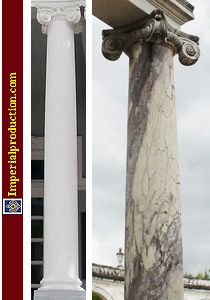

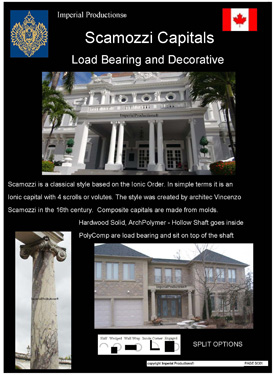

Scamozzi Capitals
are of the Ionic Order however they have 4 scrolls or volutes rather than
the elongated tubular scrolls of the traditional Roman Ionic. The
style was created by architect Vincenzo Scamozzi in the late 1500's in
the Republic of Venice and thus named accordingly after Scamozzi
himself.
He recognized that the traditional Ionic capitals could not overcome the
design dilemma of building corners, thus the 4 Volutes were the
solutions.
Columns with a Scamozzi capitals should have an Attic
base
Composite capitals are made from molds
and are
decorative only - hollow and not load bearing. The load from the lintel
should be supported by the column's shaft attached directly to the
lintel. The bottom of the shaft should be affixed to the substrate to
avoid lateral movement.
Imperial
does offer load bearing Composites that have an integrated load ring.
Loads can be up to 20,000 lbs
Finish your new Capitals & Bases with Specialty
Paints and
Real Metal Coating
|
The
Standard Collection
|
 |
 |
 |
 |
 |
 |
|
Options:
Materials
Factory Painted Metal Coated FireRated |
|
* All Prices, Exchange and Specifications Subject to Change without
Notice
*
All designs & content copyrighted 2025 ImperialProductions®
or Permissions Granted * Made in Canada |
|

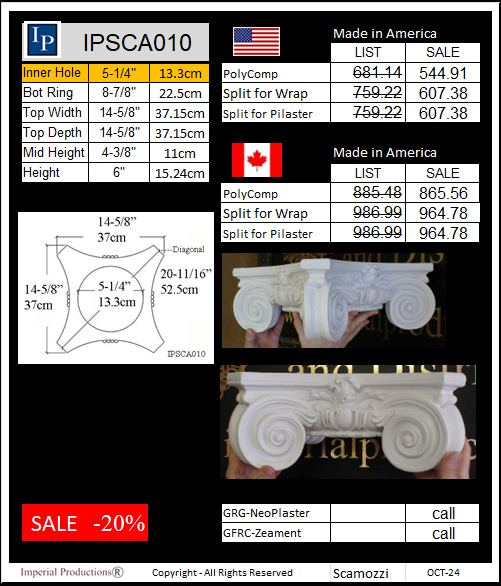

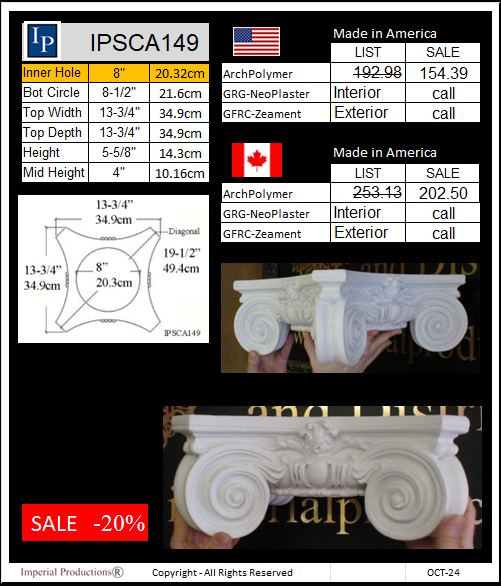

Hole

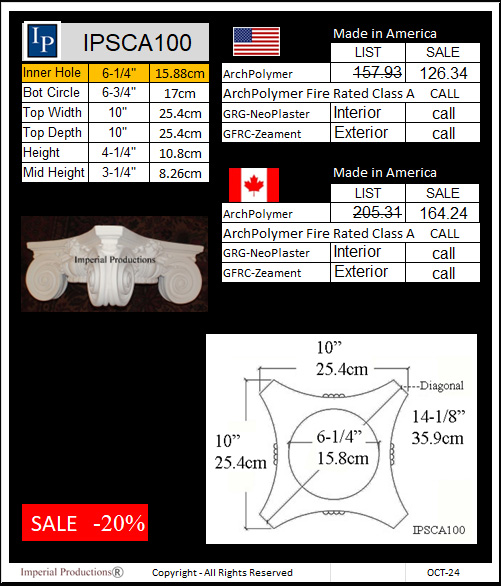

Size 6-1/4" to 7-7/8"
|
|
|
Options:
Materials
Factory Painted Metal Coated FireRated |
|
* All Prices, Exchange and Specifications Subject to Change without
Notice
*
All designs & content copyrighted 2025 ImperialProductions®
or Permissions Granted
* Made in Canada |
|
30)ArchPolymerTM
Sq

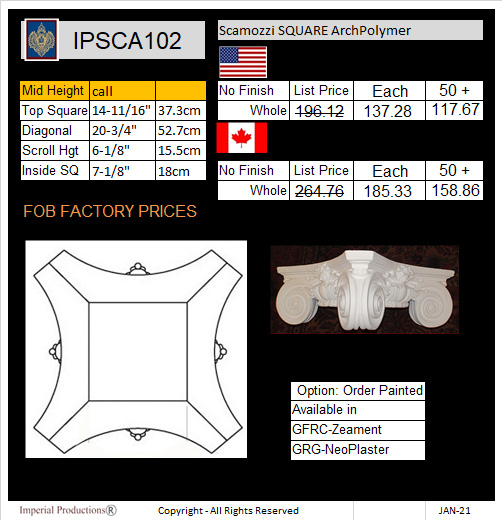

Hole 7-1/8" x 7-1/8"
|
|
 |
|
 |
 |
|
31) ArchPolymerTM
Sq

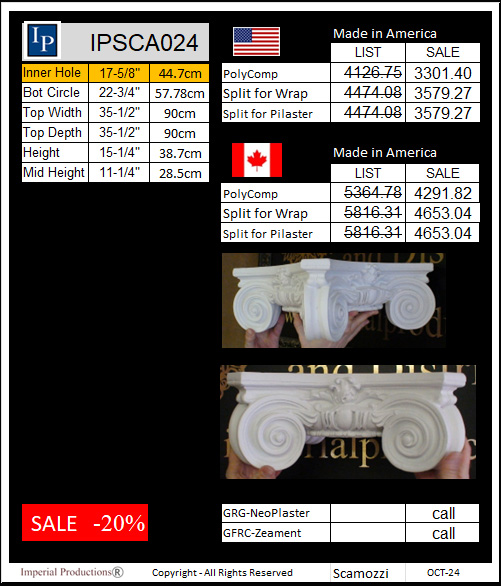

Hole 17" x 17"
|
|
 |
|
|
|
|
|
|

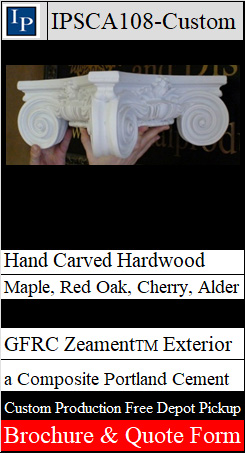

Hardwood
Hand Crafted
All parts can
be
customized
|
Hardwood
Columns
Interior Stain & Paint: American Poplar, Alder, Ash,
Basswood,
Beech,
Birch Cherry,
Maple, Maple (Sap), Mahogany-African,
Oak
(Red), Oak (White), Walnut
Exterior (Stain & Paint)
White Pine, Knotty Pine, Clear Pine, Western Red Cedar
Explore Hardwoods
|
|
Fiberglass
Interior /
Exterior
Made from
Molds |
Fiberglass
Load Bearing
Columns
Fiberglass is a
combination of
polyester resins and glass fibers with a Gelcoat covering. They are
made from molds and approximately 2-3lbs per square foot.
Fiberglass is weather resistant and is suitable for emersion in water for
fountains. The tensile strength is superior for earthquakes and hurricane zones
however they do requires to be affixed to the substrate with hardware
supplied by others. Fiberglass columns meet
ASTM-E84 fire rating standards when specified as an upgrade. They
are molded in 2 pieces and seamlessly put together when ordered whole.
Specify in halves for post wrap or pilaster applications or wedged for
corners.
Use Bondo to cover seams.
Expensive new molds are required for customization however they can be cut to height
by the factory or others.
Explore
Fiberglass
|
|
FRP-PolyCompTM
Interior /
Exterior
Made from
Molds
 |
FRP-PolyCompTM
Load Bearing
Composite Columns
FRP is 70%
calcium carbonate, 5% marble chips, 25% Polyester Resins.
Meets
ASTM-E84 fire rating. Specify in halves for post wrap or pilaster
applications or wedged for corners. Expensive new molds are
required for customization however they can be cut to height by the
factory or others.
Explore
FRP-PolyCompTM
|
|
ArchPolymerTM
Interior /
Exterior
Made from
Molds |

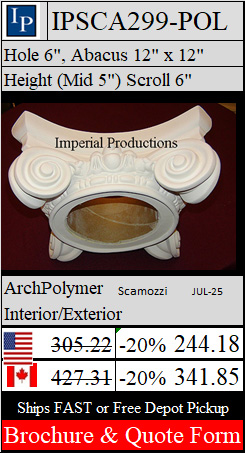

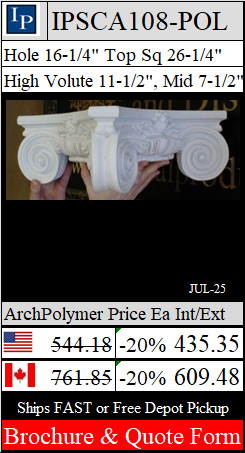

ArchPolymerTM
Decorative Columns
ArchPolymerTM
is a
synthetic wood with the same consistency as white pine. It is not a
plastic. It is rot, water and insect resistant, cuts like wood and
comes white primed. Class A Fire Rating is an upgrade that can be
specified to put into the mix. They are molded in 2 pieces. Use
our PolySpackling Compound to cover any seams. They can be cut to height
by the factory or others. For custom sizes for volume orders request a
quote.
Explore
ArchPolymerTM
|
|

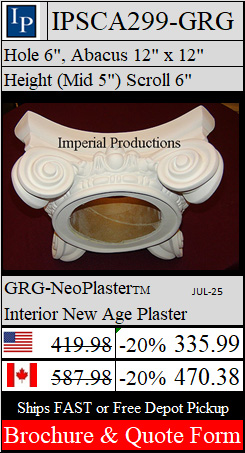

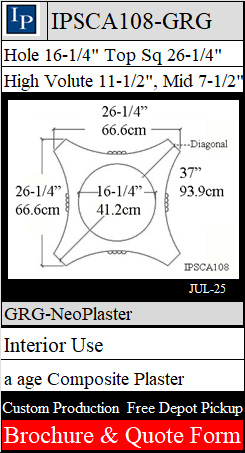

GRG-NeoPlasterTM
Made from
Molds
|
GRG-NeoPlasterTM
Decorative
Interior Columns
Alpha gypsum, cement, water, re-enforced with glass
fibers.
Lite weight 2-3lbs
per square foot. Meets ASTM-E84 Fire rated.
Odorless and
emission free. Interior use only in dry areas.
Made in a
mold in 2 pieces - tape & mud seam.
Customization
by cutting bottom of the shaft
Explore
GRG-NeoPlasterTM
|
|
Watch our YouTube Video
|
GFRC-ZeamentTM
Attic
Bases
To replace rotted or
broken bases,
GFRC-ZeamentTM
is the perfect solution! It is a composite of Portland cement and
polymers producing a smooth exterior finish. It is strong, heavy and
load bearing. The Torus and Plinth are hollow, however the Plinth is
wide enough to carry column loads. Custom sizes are available from 6" to
48" diameter. Large bases are made in 2 parts Torus and Plinth or split for reassembly around an
existing column
shaft.
Explore GFRC-Zeament
|
|
|
Real
Metal Coating
All of the column materials can be coated
with real metal. This applies particularly to captials and bases.
We have done real metal coating on column shafts as well
Explore Real Metal Coating
|
|
|
Metallic
Paints
For finishing shops or the DIY client, we
offer Ronan Aqua Leaf Real Metal Paints. Apply with an air brush or
regular brush for highlighting golds, silvers and bronzes.
Explore Ronan Paints
|
|
